| Manufacturer | DWYER |
|---|---|
| Manufacturer Part No | 160S-36Copy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 4287827 |
| Product Range | 160S Series |
| Your Part Number | |
| Technical Datasheet |
Available to Order
Manufacturer Standard Lead Time: 6 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | HK$3,569.920 |
Price for:Each
Minimum: 1
Multiple: 1
HK$3,569.92
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | DWYER |
|---|---|
| Manufacturer Part No | 160S-36Copy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 4287827 |
| Product Range | 160S Series |
| Technical Datasheet | |
| Diameter | 7.94mm |
| Insertion Length | 914.4mm |
| Body Material | Stainless Steel |
| For Use With | Flow Measurement in Air Streams |
| Product Range | 160S Series |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview

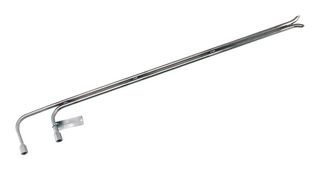

160S-36 is a series 160S “S” Type stainless steel pitot tube designed specifically for flow measurement of dirty, particulate laden air or gas streams typical in smoke stack and other environmental testing. Total and static pressure tubes are precisely aligned and welded together every 6 inches for maximum accuracy, strength, and long term durability. It is used to monitor or control air velocity or air flow in particulate laden air streams.
- 36" insertion
- Large 5/16˝ stainless steel tubing resists plugging under harsh conditions
- 1/8˝ FNPT connections are permanently welded to unit
- Able to be used in up to 1500°F (815.5°C) and 100psig (6.89 bar)
- Large, open tip design resists fouling
Technical Specifications
| Diameter | 7.94mm |
|---|---|
| Body Material | Stainless Steel |
| Product Range | 160S Series |
| Insertion Length | 914.4mm |
|---|---|
| For Use With | Flow Measurement in Air Streams |
| SVHC | No SVHC (04-Feb-2026) |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | United States Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 90269000 |
| US ECCN: | TBC |
| EU ECCN: | TBC |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | 1.292738 |
