RIA45-A1A1
Process Indicator, 5 Digit, Current/RTD/Thermocouple/Voltage/Resistance, 24 to 230 V, -20 to 60 °C

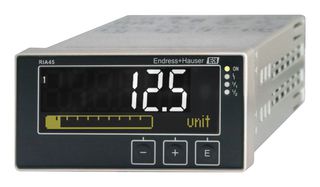

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | ENDRESS+HAUSER |
|---|---|
| Manufacturer Part No | RIA45-A1A1Copy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 4354745 |
| Product Range | RIA45 Series |
| Your Part Number | |
| Technical Datasheet |
3 In Stock
Need more?
3 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$3,182.370 |
Price for:Each
Minimum: 1
Multiple: 1
HK$3,182.37
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | ENDRESS+HAUSER |
|---|---|
| Manufacturer Part No | RIA45-A1A1Copy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 4354745 |
| Product Range | RIA45 Series |
| Technical Datasheet | |
| No. of Digits / Alpha | 5 |
| Meter Function | Current, RTD, Thermocouple, Voltage, Resistance |
| Meter Range | 0/4-20mA, 0/2-10V, 0-5/1V, 1-5V, ±1V/±10V/±30V/±100mV, 30-3000 ohm |
| Digit Height | - |
| Panel Cutout Height | 45mm |
| Panel Cutout Width | 92mm |
| Supply Voltage Min | 24V |
| Supply Voltage Max | 230V |
| Operating Temperature Min | -20°C |
| Operating Temperature Max | 60°C |
| Product Range | RIA45 Series |
| SVHC | To Be Advised |
Product Overview
RIA45-A1A1 is a RIA45 process indicator with control. The RIA45 panel meter exhibits a display, analogue inputs for process and status signals, analogue and digital outputs, and an interface for configuration. Connected sensors can be powered by the integrated LPS. All measured and calculated values are available as a signal source for display, outputs, relays and the interface.
- 5-digit 7-segment LC display, backlit
- 1 or 2 universal inputs
- Min./max. value saved
- 1 or 2 calculated values and linearization table
- SIL2 approval (optional); marine approval
- 2 x universal (U, I, R, RTD, TC) input, 1 x loop power supply output
Technical Specifications
| No. of Digits / Alpha | 5 |
|---|---|
| Meter Range | 0/4-20mA, 0/2-10V, 0-5/1V, 1-5V, ±1V/±10V/±30V/±100mV, 30-3000 ohm |
| Panel Cutout Height | 45mm |
| Supply Voltage Min | 24V |
| Operating Temperature Min | -20°C |
| Product Range | RIA45 Series |
| Meter Function | Current, RTD, Thermocouple, Voltage, Resistance |
|---|---|
| Digit Height | - |
| Panel Cutout Width | 92mm |
| Supply Voltage Max | 230V |
| Operating Temperature Max | 60°C |
| SVHC | To Be Advised |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Germany Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85312095 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | To Be Advised |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .44 |
