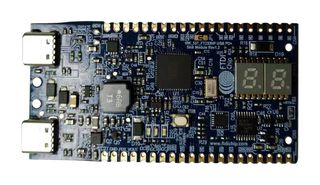

UMFT233HPEV-SD
Evaluation Board, FT232HP, USB Type-C Power Delivery (PD) Controller, Power Management
- Manufacturer:
- FTDI FTDI
- Manufacturer Part No:
- UMFT233HPEV-SD
- Order Code:
- 3919410
- Technical Datasheet:
- UMFT233HPEV-SD Datasheet
Product Overview
UMFT233HPEV-SD sink module board is a high-speed USB Type-C to multipurpose UART/JTAG/SPI/I2C serial interface module with two Type-C™ USB PD ports. It does not support source power capability as what UMFT233HPEV EVB provides. The module has 71mm x 37mm dimensions, with a pair of Type-C power delivery ports incorporated into it. Both ports serve only as sink port (receiving power). PD Port1 is meant for USB data communication with PC host while PD Port2 can support the 5V, 9V, 12V, 15V and 20V power delivery object (PDO) profiles - as defined in revision 3.0 of the USB Power Delivery specification. These profiles may be configured via an external EEPROM memory, with 7 segment LED displaying the PDO profile to be used.
- 2 PD USB type-C ports
- LEDs indication for the USB and Power Source
- Connector for functional interface
- 7 segment LED for displaying PD profiles of either PD1 port/PD2 port selectable by pushbutton switch
- DC-DC converters for FT233HPQ and other circuits
Footnotes
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- Power Management
- :
- USB Type-C Power Delivery (PD) Controller
- :
- FTDI
- :
- FT233HP
- :
- -
- :
- Evaluation Module FT233HP
