VNCLO-START1

Development Board, VNC2-64Q, USB 2.0 Host/Controller, Interface, Yes/ASIC/16-Bit, w/VNC2 Debugger

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
FTDI FTDI
Manufacturer Part No:
VNCLO-START1
Order Code:
1872599
Technical Datasheet:
VNCLO-START1   Datasheet
See all Technical Docs

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
-

:
-

:
-

:
-

:
-

:
-

:
Board

:
-

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (3)

Product Overview

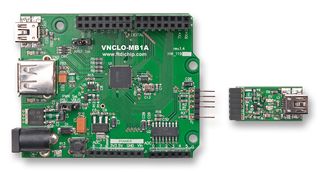

The VNCLO-START1 is a development kit platform for the Vinculum-II (VNC2) USB host/device controller. This development kit combines the Vinculo motherboard with the VNC2 debugger/programmer module. The Vinculum-II supports dual USB host/device interfaces, FIFO, SPI, I2C, PWM and UART. On board is a 10bit, 8 channel ADC and 38 GPIO which are available for quick prototyping. This development platform features a free software development suite including a full featured C compiler, real time operating system and USB host/device software stack for HID, CDC, HUB, printer and BOMS (FAT file system). The new starter kit (VNCLO-START1) provides a cost effective rapid development solution at a cost effective price.
  • Vinco mother board is based on VNC2-64Q microcontroller
  • Superset of the Arduino Duemilanove/Uno development boards
  • FTDI integrated development environment including code editor, compiler, assembler and debugger
  • Precompiled drivers for a variety of interfaces eg. USB, UART, SPI
  • Compatible with existing Arduino shields
  • VNC2 DEBUG MODULE is a programmer and debugger for VNC2 IC designs
  • UHCI/OHCI /EHCI host controller compatible
  • USB 2.0 full speed compatible
  • On board FTDI FT232R which provides conversion from USB to serial interface for VNC2 debug port
  • One USB mini B type socket to connect with a PC

Applications

Industrial, Medical, Communications & Networking, Consumer Electronics, Portable Devices, Motor Drive & Control, Embedded Design & Development

Contents

Vinco motherboard, VNC2 DEBUG MODULE.
