GW7401

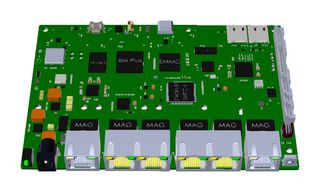

Single Board Computer, GW7400, i.MX8M Family, ARM Cortex-A53, 4GB LPDDR4 RAM
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | GATEWORKS |
|---|---|
| Manufacturer Part No | GW7401Copy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 3958177 |
| Product Range | TUK SGACK902S Keystone Coupler |
| Your Part Number | |
| Technical Datasheet |
9 In Stock
Need more?
9 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$8,830.790 |
Price for:Each
Minimum: 1
Multiple: 1
HK$8,830.79
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | GATEWORKS |
|---|---|
| Manufacturer Part No | GW7401Copy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 3958177 |
| Product Range | TUK SGACK902S Keystone Coupler |
| Technical Datasheet | |
| Silicon Manufacturer | Gateworks |
| Processor Core Type | NXP ARM Cortex A53 Quad Core |
| Core Number | GW7400 |
| Silicon Family Name | i.MX8M Plus |
| Core Architecture | ARM |
| Core Sub-Architecture | Cortex-A53 |
| Silicon Core Number | GW7400 |
| Kit Contents | GW7400 |
| Operating System | Ubuntu Linux |
| Operating Temperature Range | -40°C to +85°C |
| Product Range | TUK SGACK902S Keystone Coupler |
Product Overview
GW7401 is a Venice GW7400 single board computer targeted for industrial applications. The GW7401 features the 64-bit NXP™ i.MX8M Plus Quad Core ARM® Cortex™-A53 SoC processor operating at 1.6GHz, 1GBytes of LPDDR4 DRAM, and 8GBytes of eMMC System Flash. The i.MX8M Plus SoC features a Neural Processing Unit (NPU) operating at up to 2.3 TOPS, a Video Processing Unit (VPU) supporting up to 1080p60, a GC7000UL Graphics Processing Unit (GPU), and a Cadence® Tensilica® HiFi 4 DSP. Six total Gigabit Ethernet ports offer 1x WAN and 5x switched LAN wired connectivity.
- One high-power mini-PCIe socket with PCIe 3.0 and USB 2.0 signalling
- Two high-power mini-PCIe sockets with USB 3.0 signalling
- One M.2 B-key socket with USB 3.0 and dual nano SIMs
- Optional Laird sterling-LWB5+ 802.11a/b/g/n/ac Wi-Fi & BLE v5.2 module (MHF4 antenna connector)
- Optional u-blox GPS receiver with MMCX antenna connector
- Digital I/O & analogue port, I2C & SPI port, RS232/RS485 and TTL serial port, USB 3.0 Type-C port
- CAN bus transceiver, MIPI-DSI and MIPI-CSI port, I2S audio, digital 3-axis MEMS accelerometer
- Real time clock with battery backup
- Voltage and temperature monitor, serial configuration EEPROM, programmable watchdog timer
- 8 to 60VDC input voltage range
Technical Specifications
| Silicon Manufacturer | Gateworks |
|---|---|
| Core Number | GW7400 |
| Core Architecture | ARM |
| Silicon Core Number | GW7400 |
| Operating System | Ubuntu Linux |
| Product Range | TUK SGACK902S Keystone Coupler |
| Processor Core Type | NXP ARM Cortex A53 Quad Core |
|---|---|
| Silicon Family Name | i.MX8M Plus |
| Core Sub-Architecture | Cortex-A53 |
| Kit Contents | GW7400 |
| Operating Temperature Range | -40°C to +85°C |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | United States Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84719000 |
| US ECCN: | 5A992.c |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | To be advised |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .13 |
