Product Information
| Manufacturer | HAMMOND |
|---|---|
| Manufacturer Part No | 1402HCopy |
| Manufacturer Standard Lead Time | 4 weeks |
| Order Code | 1876477 |
| Product Range | 1402 |
| Also Known As | GTIN UPC EAN: 0623980085609 |
| Technical Datasheet | |
| Enclosure Type | Instrument |
| Enclosure Material | Aluminium |
| External Height - Metric | 99mm |
| External Width - Metric | 254mm |
| External Depth - Metric | 185mm |
| IP Rating | IP32 |
| Body Colour | Grey |
| NEMA Rating | - |
| External Height - Imperial | 3.9" |
| External Width - Imperial | 10" |
| External Depth - Imperial | 7.28" |
| Product Range | 1402 |
| SVHC | No SVHC (04-Feb-2026) |
| Configurable | No |
Product Overview

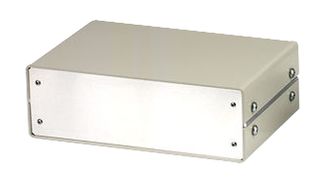

The 1402H is a Solid Instrument Enclosure with panels that can be easily removed for access to components.
- Top and bottom made from 12-gauge aluminum finished in contempra grey
- Top and bottom are attached to an internal aluminum extrusion which contains mounting slots for printed circuit boards or panels
- Front and rear panels are natural aluminum (paper coated one side) which are attached with screws to the aluminum mounting extrusion
Applications
Industrial
Contents
Eight 6-32 nickel-plated screws, Eight 4-24 x 1/4" self-tapping screws, 0.064" Thick aluminum panels (natural aluminum), Four self adhesive rubber feet and Extra screws - 1421J6 (6-32 x 1/4 sheet metal screws).
Technical Specifications
| Enclosure Type | Instrument |
|---|---|
| External Height - Metric | 99mm |
| External Depth - Metric | 185mm |
| Body Colour | Grey |
| External Height - Imperial | 3.9" |
| External Depth - Imperial | 7.28" |
| SVHC | No SVHC (04-Feb-2026) |
| Enclosure Material | Aluminium |
|---|---|
| External Width - Metric | 254mm |
| IP Rating | IP32 |
| NEMA Rating | - |
| External Width - Imperial | 10" |
| Product Range | 1402 |
| Configurable | No |
Technical Docs (2)
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Canada Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 76169990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | 1.365 |
