1455C1202BK

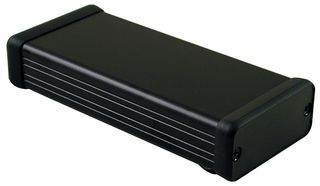

Metal Enclosure, 1455 Series, Extruded With Plastic End Panels, Small, Extruded Aluminium, 23 mm
Available to Order
Manufacturer Standard Lead Time: 5 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | HK$138.660 |
| 5+ | HK$119.030 |
| 10+ | HK$113.520 |
| 20+ | HK$105.740 |
| 50+ | HK$97.960 |
Price for:Each
Minimum: 1
Multiple: 1
HK$138.66
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | HAMMOND |
|---|---|
| Manufacturer Part No | 1455C1202BKCopy |
| Manufacturer Standard Lead Time | 5 weeks |
| Order Code | 9287914 |
| Product Range | 1455 |
| Also Known As | GTIN UPC EAN: 623980238272 |
| Technical Datasheet | |
| Enclosure Type | Small |
| Enclosure Material | Extruded Aluminium |
| External Height - Metric | 23mm |
| External Width - Metric | 54mm |
| External Depth - Metric | 120mm |
| IP Rating | IP54 |
| Body Colour | Black |
| NEMA Rating | - |
| External Height - Imperial | 0.91" |
| External Width - Imperial | 2.13" |
| External Depth - Imperial | 4.72" |
| Product Range | 1455 |
| SVHC | No SVHC (04-Feb-2026) |
| Configurable | Yes |
Product Overview
- Designed to house P.C. boards or for equipment interfacing
- Sized for standard Eurocards
- P.C. boards mount horizontally by sliding into internal slots extruded into the enclosure body
- Easy to machine - one piece - front & back plastic end panels
- Rugged body constructed from extruded aluminum with a minimum thickness of .06” (1.5 mm)
- Two easy to machine, black solid ABS plastic end panels with integral bezel
- Self adhesive clear rubber feet
- Extruded aluminum body with a choice of colours
- Self adhesive clear rubber feet
Notes
Recommended screw torque is 5 lbf/in
Technical Specifications
| Enclosure Type | Small |
|---|---|
| External Height - Metric | 23mm |
| External Depth - Metric | 120mm |
| Body Colour | Black |
| External Height - Imperial | 0.91" |
| External Depth - Imperial | 4.72" |
| SVHC | No SVHC (04-Feb-2026) |
| Enclosure Material | Extruded Aluminium |
|---|---|
| External Width - Metric | 54mm |
| IP Rating | IP54 |
| NEMA Rating | - |
| External Width - Imperial | 2.13" |
| Product Range | 1455 |
| Configurable | Yes |
Technical Docs (2)
Alternatives for 1455C1202BK
1 Product Found
Associated Products
5 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Canada Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 76129080 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .092 |
