08968020001A0

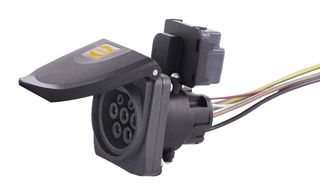

The HARTING 08968020001A0 is a Type 2 EV charging socket with motorised locking, designed for Mode 3 AC electric vehicle charging in accordance with IEC 62196 2. Rated at 32A and 480V AC, the connector supports charging power up to 22kW, making it suitable for AC charging stations and onboard charging interfaces. This charging socket features 7 contacts, comprising 5 power contacts (L1, L2, L3, N, PE) and 2 signal contacts (CP, PP), enabling reliable power delivery and communication between the vehicle and charging infrastructure. The connector uses crimp termination and a robust Polyamide (PA) insert, ensuring durability across demanding automotive and e mobility environments. Designed for long service life, the socket supports ≥10,000 mating cycles, with insertion and withdrawal forces below 100N. It provides IP44 protection when mated and IP55 when closed, along with an IK08 impact resistance rating, offering dependable protection against environmental and mechanical stresses. The operating temperature range spans 30°C to +50°C, with extended tolerance during storage and transport.

• Type 2 EV charging socket with motorised locking, designed for secure Mode 3 AC charging applications
• Rated at 32A and 480V AC, supporting AC charging power up to 22kW
• 7 Contact configuration with 5 power contacts (L1, L2, L3, N, PE) and 2 signal contacts (CP, PP)
• Crimp termination for reliable electrical connection and straightforward integration
• Motorised locking mechanism enhances safety during charging and prevents accidental disconnection
• IP44 protection when mated and IP55 when closed, suitable for outdoor and public charging environments
• IK08 impact resistance and durable Polyamide (PA) insert for long term mechanical robustness
• Designed for ≥10,000 mating cycles with insertion and withdrawal forces below 100N
• Wide operating temperature range from -30°C to +50°C ( -40°C to +80°C storage/transport)
• IEC 62196 2 compliant, CE and UKCA approved for EV charging infrastructure
