Product Information
| Manufacturer | HARTING |
|---|---|
| Manufacturer Part No | 09 03 296 2825Copy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 1506223 |
| Product Range | Type C |
| Technical Datasheet | |
| Product Range | Type C |
| No. of Contacts | 96Contacts |
| Gender | Receptacle(View Associated Connectors) |
| Pitch Spacing | 2.54mm |
| No. of Rows | 3 Row |
| Rows Loaded | a + b + c |
| Contact Plating | Gold Plated Contacts |
| Contact Material | Copper Alloy |
| No. of Mating Cycles | 500 |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview

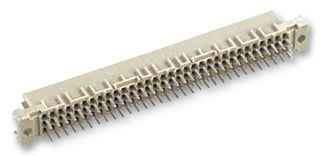

The 09 03 296 2825 is a 96-way 3-row DIN 41612 Socket, 2.54mm pitch, female connector with straight solder pins, solder termination with gold flashed over nickel copper alloy contacts.
- UL94V-0 Flammability rating
Applications
Industrial
Technical Specifications
| Product Range | Type C |
|---|---|
| Gender | Receptacle |
| No. of Rows | 3 Row |
| Contact Plating | Gold Plated Contacts |
| No. of Mating Cycles | 500 |
| No. of Contacts | 96Contacts |
|---|---|
| Pitch Spacing | 2.54mm |
| Rows Loaded | a + b + c |
| Contact Material | Copper Alloy |
| SVHC | No SVHC (25-Jun-2025) |
Technical Docs (3)
Alternatives for 09 03 296 2825
8 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Germany Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85366930 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .015 |
