09 04 132 6921
DIN 41612 Connector, 32 Contacts, Plug, 5.08 mm, 2 Row, a + c

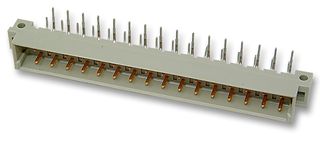

Image is for illustrative purposes only. Please refer to product description.
2,461 In Stock
Need more?
2461 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$45.970 |
| 20+ | HK$43.210 |
| 75+ | HK$39.600 |
| 300+ | HK$37.640 |
| 600+ | HK$36.240 |
Price for:Each
Minimum: 1
Multiple: 1
HK$45.97
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerHARTING
Manufacturer Part No09 04 132 6921
Order Code1096917
Technical Datasheet
Product Range-
No. of Contacts32Contacts
Pitch Spacing5.08mm
No. of Rows2 Row
Rows Loadeda + c
Contact PlatingGold Plated Contacts
Contact MaterialCopper
No. of Mating Cycles400
SVHCNo SVHC (08-Jul-2021)
Product Overview
The 09 04 132 6921 from Harting is a DIN power male connector with angled solder pins. It is a 5.08mm pitch, 32 positions, DIN 41 612 type D male connector.
- Performance level 2 according to IEC 60603-2 standard
- Maximum working current is 6A
- Temperature range from -55°C to 125°C
- Thermoplastic resin glass fibre filled moulding
- Copper alloy with gold plated contacts
Applications
Industrial, Logistics
Technical Specifications
Product Range
-
Gender
Plug
No. of Rows
2 Row
Contact Plating
Gold Plated Contacts
No. of Mating Cycles
400
No. of Contacts
32Contacts
Pitch Spacing
5.08mm
Rows Loaded
a + c
Contact Material
Copper
SVHC
No SVHC (08-Jul-2021)
