930757104.

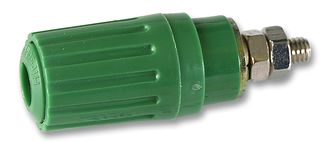

Binding Post, PKI 100 Series, 35 A, 60 VDC, Nickel Plated Contacts, Panel Mount, Green
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | HIRSCHMANN TEST AND MEASUREMENT |
|---|---|
| Manufacturer Part No | 930757104.Copy |
| Order Code | 1256500 |
| Product Range | PKI 100 Series |
| Your Part Number | |
| Technical Datasheet |
No Longer Stocked
Product Information
| Manufacturer | HIRSCHMANN TEST AND MEASUREMENT |
|---|---|
| Manufacturer Part No | 930757104.Copy |
| Order Code | 1256500 |
| Product Range | PKI 100 Series |
| Technical Datasheet | |
| Product Range | PKI 100 Series |
| Current Rating | 35A |
| Voltage Rating | 60VDC |
| Contact Plating | Nickel Plated Contacts |
| Connector Mounting | Panel Mount |
| Connector Colour | Green |
| Contact Material | Brass |
| SVHC | Lead (25-Jun-2020) |
Product Overview
Pole terminal with captive insulated head, which is held under constant pressure against the insulated rings by a spring. 4 mm diameter nickel-plated, brass threaded bolt with 2 mm diameter transverse hole. For non-rotating installation in switchpanels and equipment chassis with wall thickness up to 3.5 mm.
- 4 mm system
- Sockets
- M4 thread connection
- 30 VAC / 60 VDC rated voltage (1)
- O (3) measurement cat. acc. to IEC 61010
- 35 A rated current (1)
- PA housing material
- (1) for normal environmental conditions -5°C to +40°C
- (3) without rated measurement category, for other circuits that are not directly connected to mains
Technical Specifications
| Product Range | PKI 100 Series |
|---|---|
| Voltage Rating | 60VDC |
| Connector Mounting | Panel Mount |
| Contact Material | Brass |
| Current Rating | 35A |
|---|---|
| Contact Plating | Nickel Plated Contacts |
| Connector Colour | Green |
| SVHC | Lead (25-Jun-2020) |
Technical Docs (1)
Associated Products
8 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Hungary Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369010 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | To be advised |
| SVHC: | Lead (25-Jun-2020) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .062 |
