934088100

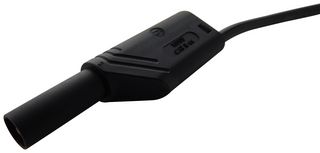

Test Lead, 4mm Banana Plug to 4mm Banana Plug, Black, 1 kV, 32 A, 1 m
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | HIRSCHMANN TEST AND MEASUREMENT |
|---|---|
| Manufacturer Part No | 934088100Copy |
| Manufacturer Standard Lead Time | 10 weeks |
| Order Code | 1011432 |
| Product Range | MLS WS 100/2,5 Series |
| Your Part Number | |
| Technical Datasheet |
194 In Stock
Need more?
8 Delivery in 1-2 Business Days(SG stock)
186 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$77.910 |
| 5+ | HK$76.360 |
| 10+ | HK$74.800 |
Price for:Each
Minimum: 1
Multiple: 1
HK$77.91
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | HIRSCHMANN TEST AND MEASUREMENT |
|---|---|
| Manufacturer Part No | 934088100Copy |
| Manufacturer Standard Lead Time | 10 weeks |
| Order Code | 1011432 |
| Product Range | MLS WS 100/2,5 Series |
| Technical Datasheet | |
| Test Connector Type A | 4mm Stackable Banana Plug, Shrouded |
| Test Connector Type B | 4mm Stackable Banana Plug, Shrouded |
| Lead Length - Imperial | 3.3ft |
| Lead Length - Metric | 1m |
| Insulator Colour | Black |
| Current Rating | 32A |
| Voltage Rating | 1kV |
| Product Range | MLS WS 100/2,5 Series |
| SVHC | No SVHC (23-Jan-2024) |
Product Overview
934088100 is a safety measuring lead. It features either end 4mm diameter safety connector with onward connection capability (4mm socket). It has nickel-plated copper beryllium contact spring. Also features highly flexible, double insulated stranded lead, shatter-proof grip sleeve and lead. Built in colour indicator for easy identification of insulation damages.
- MLS WS 100/2.5 type, black colour, 200cm cable length, 2.5mm² conductor size
- 4mm pin dimensions, spring-loaded pin type of contact
- LEH-XY cable type, highly flexible lead, 320 x 0.10mm wire stranding
- 1000V AC/DC rated voltage, CAT III measurement cat. acc. To IEC61010
- 32A rated current (consider derating curve), 12mohm contact resistance
- Brass contact pin material, copper-beryllium contact spring material
- PA housing material, PVC cable material
- UL 94 V-2 housing (basic material)
- Temperature range from -15°C to +70°C
Technical Specifications
| Test Connector Type A | 4mm Stackable Banana Plug, Shrouded |
|---|---|
| Lead Length - Imperial | 3.3ft |
| Insulator Colour | Black |
| Voltage Rating | 1kV |
| SVHC | No SVHC (23-Jan-2024) |
| Test Connector Type B | 4mm Stackable Banana Plug, Shrouded |
|---|---|
| Lead Length - Metric | 1m |
| Current Rating | 32A |
| Product Range | MLS WS 100/2,5 Series |
Technical Docs (2)
Alternatives for 934088100
1 Product Found
Associated Products
8 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Germany Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85444290 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (23-Jan-2024) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .056 |
