934099101

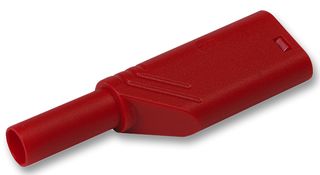

Banana Test Connector, 4mm, Plug, Cable Mount, 24 A, 1 kV, Nickel Plated Contacts, Red
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | HIRSCHMANN TEST AND MEASUREMENT |
|---|---|
| Manufacturer Part No | 934099101Copy |
| Manufacturer Standard Lead Time | 12 weeks |
| Order Code | 8281955 |
| Product Range | LAS S WS Series |
| Your Part Number | |
| Technical Datasheet |
3,213 In Stock
750 more incoming. You can reserve stock now
115 Delivery in 1-2 Business Days(SG stock)
3,098 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$81.530 |
| 5+ | HK$80.780 |
| 10+ | HK$80.030 |
Price for:Each
Minimum: 1
Multiple: 1
HK$81.53
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | HIRSCHMANN TEST AND MEASUREMENT |
|---|---|
| Manufacturer Part No | 934099101Copy |
| Manufacturer Standard Lead Time | 12 weeks |
| Order Code | 8281955 |
| Product Range | LAS S WS Series |
| Technical Datasheet | |
| Gender | Plug(View Associated Connectors) |
| Connector Mounting | Cable Mount |
| Current Rating | 24A |
| Voltage Rating | 1kV |
| Contact Plating | Nickel Plated Contacts |
| Connector Colour | Red |
| Contact Material | Brass |
| Contact Termination Type | Screw |
| Product Range | LAS S WS Series |
| SVHC | No SVHC (23-Jan-2024) |
Product Overview
Safety connector for tower construction with screw connection for leads from 0.5 mm² to 1.5 mm², outer diameter of lead max. 4.2 mm. Plug 4 mm with caged spring, rigid socket 4 mm, 1000 V-system. Simple assembly by "Click-System".
- 4 mm safety system
- Plugs
- AC/DC 1000 V rated voltage (1)
- CAT II measurement cat. acc. to IEC 61010
- 24 A rated current (1)
- PA housing material
- (1) for normal environmental conditions -5°C to +40°C
- UL 94 V-2 polyamide (PA) housing material
- Temperature range: -15°C to +70°C
- Available in variety of colours
Applications
Test & Measurement
Technical Specifications
| Gender | Plug |
|---|---|
| Current Rating | 24A |
| Contact Plating | Nickel Plated Contacts |
| Contact Material | Brass |
| Product Range | LAS S WS Series |
| Connector Mounting | Cable Mount |
|---|---|
| Voltage Rating | 1kV |
| Connector Colour | Red |
| Contact Termination Type | Screw |
| SVHC | No SVHC (23-Jan-2024) |
Technical Docs (2)
Associated Products
5 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Germany Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85366990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Y-Ex RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (23-Jan-2024) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .008 |
