HIRSCHMANN TEST AND MEASUREMENT 934099103

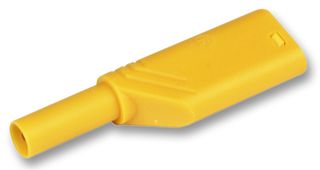

Banana Test Connector, 4mm, Plug, Cable Mount, 24 A, 1 kV, Nickel Plated Contacts, Yellow

HIRSCHMANN TEST AND MEASUREMENT 934099103
×

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
934099103
Order Code:
8281971
  • Enter your custom part number in the textbox above
  • Maximum Part Numbers added.
    Delete older entries to add more.

Part Number Saved

Part Number Saved

Technical Datasheet:
934099103   Datasheet
ECAD / MCAD
Supply Frame Models Link
See all Technical Docs

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
24A

:
1kV

Find similar products Choose and modify the attributes above to find similar products.

Technical Documents (1)

Product Overview

The LAS S WS series from Hirschmann are 4mm rigid spring loaded safety plugs. These are safety connectors for tower construction with screw connection for leads from 0.5mm² to 1.5 mm² and 4.2mm maximum lead outer diameter. Simple assembly by Click-System.
  • IEC 61010 measurement category
  • Screw termination
  • Rated voltage of AC/DC 1000V
  • Rated current of 24A
  • Contact resistance is 10mohm
  • Nickel plated brass contact
  • Contact spring material is beryllium copper
  • UL 94 V-2 approved polyamide (PA) housing material
  • Temperature range from -15°C to +70°C
  • Available in variety of colours

Applications

Test & Measurement
