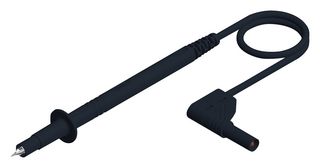

Test Tip Probe, Test Tip Probe, 4mm Right Angle Stackable Banana Plug, Shrouded, 3.3 ft, 1 m
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | HIRSCHMANN TEST AND MEASUREMENT |
|---|---|
| Manufacturer Part No | 934258100Copy |
| Manufacturer Standard Lead Time | 10 weeks |
| Order Code | 2914893 |
| Product Range | PL 2600 SIL S W Series |
| Your Part Number | |
| Technical Datasheet |
10 In Stock
Need more?
10 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$108.540 |
| 25+ | HK$101.070 |
Price for:Each
Minimum: 1
Multiple: 1
HK$108.54
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | HIRSCHMANN TEST AND MEASUREMENT |
|---|---|
| Manufacturer Part No | 934258100Copy |
| Manufacturer Standard Lead Time | 10 weeks |
| Order Code | 2914893 |
| Product Range | PL 2600 SIL S W Series |
| Technical Datasheet | |
| Test Connector Type A | Test Tip Probe |
| Test Connector Type B | 4mm Right Angle Stackable Banana Plug, Shrouded |
| Lead Length - Imperial | 3.3ft |
| Lead Length - Metric | 1m |
| Insulator Colour | Black |
| Current Rating | 16A |
| Voltage Rating | 1kV |
| Product Range | PL 2600 SIL S W Series |
| SVHC | No SVHC (15-Jan-2018) |
Product Overview
Touch-safe silicone test lead with dual function safety test probe. Tip for penetration of oxide layers and pin Ø4mm for insertion in sockets. Highly flexible, double insulated stranded lead, soldering iron resistant. Safety plug Ø 4mm with angled outlet and integrated bend protection.
- 4 mm safety system
- Measuring leads
- AC/DC 1000 V rated voltage (1)
- CAT II measurement cat. acc. to IEC 61010
- 16 A rated current (1)
- PA, PP housing material
- (1) for normal environmental conditions -5°C to +40°C
Technical Specifications
| Test Connector Type A | Test Tip Probe |
|---|---|
| Lead Length - Imperial | 3.3ft |
| Insulator Colour | Black |
| Voltage Rating | 1kV |
| SVHC | No SVHC (15-Jan-2018) |
| Test Connector Type B | 4mm Right Angle Stackable Banana Plug, Shrouded |
|---|---|
| Lead Length - Metric | 1m |
| Current Rating | 16A |
| Product Range | PL 2600 SIL S W Series |
Technical Docs (2)
Associated Products
8 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Germany Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 90309000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Y-Ex RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (15-Jan-2018) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .04 |
