973646100

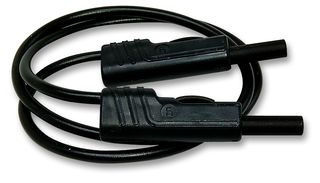

Test Lead, 4mm Banana Plug to 4mm Banana Plug, Black, 60 V, 16 A, 1 m
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | HIRSCHMANN TEST AND MEASUREMENT |
|---|---|
| Manufacturer Part No | 973646100Copy |
| Manufacturer Standard Lead Time | 10 weeks |
| Order Code | 810587 |
| Product Range | MLB 100/1 V Series |
| Your Part Number | |
| Technical Datasheet |
246 In Stock
Need more?
246 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$122.860 |
| 16+ | HK$117.990 |
| 51+ | HK$113.060 |
Price for:Each
Minimum: 1
Multiple: 1
HK$122.86
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | HIRSCHMANN TEST AND MEASUREMENT |
|---|---|
| Manufacturer Part No | 973646100Copy |
| Manufacturer Standard Lead Time | 10 weeks |
| Order Code | 810587 |
| Product Range | MLB 100/1 V Series |
| Technical Datasheet | |
| Test Connector Type A | 4mm Stackable Banana Plug, Shrouded |
| Test Connector Type B | 4mm Stackable Banana Plug, Shrouded |
| Lead Length - Imperial | 3.3ft |
| Lead Length - Metric | 1m |
| Insulator Colour | Black |
| Current Rating | 16A |
| Voltage Rating | 60VDC |
| Product Range | MLB 100/1 V Series |
| SVHC | No SVHC (23-Jan-2024) |
Product Overview
973646100 is a 4mm banana plug to 4mm banana plug measuring lead. This is a contact-protected measuring lead, at either end:4mm diameter plug, insulated by latching and sprung insulated sleeve which is only released by pressure on the side mounted locking spring.
- Highly flexible, double insulated stranded conductor
- Colour indicator for the recognition of damage to the insulation
- 4mm diameter socket for tower construction
- 100cm cable length, 1mm² conductor size, black housing colour
- 30VAC / 60VDC rated voltage, 16A rated current
- 22mohm contact resistance
- Contact pin: brass, contact spring: copper-beryllium
- PVC cable material, PA housing material
- UL 94 V-2 flammability rating
- Temperature range from -15°C to +70°C
Technical Specifications
| Test Connector Type A | 4mm Stackable Banana Plug, Shrouded |
|---|---|
| Lead Length - Imperial | 3.3ft |
| Insulator Colour | Black |
| Voltage Rating | 60VDC |
| SVHC | No SVHC (23-Jan-2024) |
| Test Connector Type B | 4mm Stackable Banana Plug, Shrouded |
|---|---|
| Lead Length - Metric | 1m |
| Current Rating | 16A |
| Product Range | MLB 100/1 V Series |
Technical Docs (2)
Associated Products
8 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Germany Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85444290 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (23-Jan-2024) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .046 |
