CA3WLD

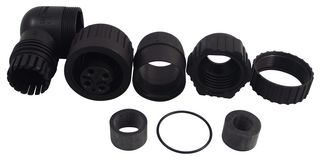

The CA3WLD is a 3+PE-pole panel-mounted angled Cable Receptacle with socket-type silver-plated PA 66-GF 25 contacts. It has NBR O-ring and screw termination. The CA-series is optimally suitable for all areas of applications in hydraulics, pneumatics, device and equipment manufacturing and traffic control technology. An important future-market will be the photovoltaic area. The screw-locking industrial connector for all control cable connections in hydraulic and pneumatic systems and special machinery construction may be found in continuous and proportional valves as well as in testing and inspection devices in environmental technology.

• Integrated strain relief
• M22x2 Cable gland
• 2.5mm² Maximum conductor size
• 6 to 12mm Cable diameter
• 250VDC/400VAC Rated voltage
• 10A DC/16A AC Rated current
• ≤3mΩ Contact resistance
• IP67 Protection

Applications

Industrial
