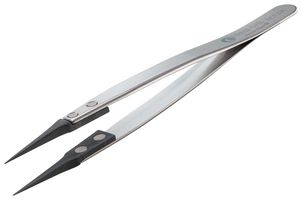

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | IDEAL-TEK |
|---|---|
| Manufacturer Part No | 5 CF SACopy |
| Manufacturer Standard Lead Time | 19 weeks |
| Order Code | 3480501 |
| Also Known As | 7640144712952 |
| Your Part Number | |
| Technical Datasheet |
11 In Stock
Need more?
11 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$268.720 |
Price for:Each
Minimum: 1
Multiple: 1
HK$268.72
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | IDEAL-TEK |
|---|---|
| Manufacturer Part No | 5 CF SACopy |
| Manufacturer Standard Lead Time | 19 weeks |
| Order Code | 3480501 |
| Also Known As | 7640144712952 |
| Technical Datasheet | |
| Tweezer Type | Plastic Tip |
| Tweezer Tip Type | - |
| Overall Length | 130mm |
| Tip Style | Style 5 |
| Tweezer Body Material | Stainless Steel Body |
| Tweezer Tip Material | Carbon Fibre Tip |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
The 5 CF SA is a Precision Tweezer made of anti-magnetic anti-acid stainless steel body with ESD Carbofib (CF) tips. It is good chemical resistance (oils, grease, fuels and non polar solvents), not resistant to strong acids, alkalis and hot water or steam. It contains from 16.5 to 18.5 wt% chromium and has important quantities of nickel and molybdenum as additional alloying elements. It is suitable for use in electronic industry, watch-makers, jewellers and laboratory and medical applications in moderately aggressive chemical environments.
- Heat stabilized
- Very high rigidity, excellent tensile and flexural strength, fatigue and creep resistance
- Low friction, self lubricating properties, excellent wear and abrasion resistance
- Good heat capability
- ESD safe material, (avoid powder attraction, sparks generation, ignition sources)
- Very low coefficient of linear thermal expansion
- Non-magnetisable
- Good corrosion resistance to most chemicals, salts and acids
- Generally used where corrosion resistance and toughness are primary requirements
- Annealed state
- 8g/cm³ Density
- 40% Elongation, break
- 200GPa Modulus of elasticity
Applications
Industrial, Medical, Consumer Electronics
Technical Specifications
| Tweezer Type | Plastic Tip |
|---|---|
| Overall Length | 130mm |
| Tweezer Body Material | Stainless Steel Body |
| Product Range | - |
| Tweezer Tip Type | - |
|---|---|
| Tip Style | Style 5 |
| Tweezer Tip Material | Carbon Fibre Tip |
| SVHC | No SVHC (04-Feb-2026) |
Technical Docs (1)
Alternatives for 5 CF SA
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Switzerland Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 82032000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .02 |
