EVAL800WPSU3PP7TOBO1

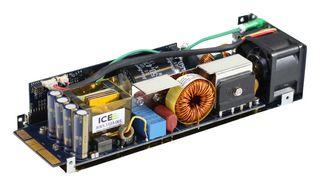

800W evaluation board is intended to be a cost optimized form, fit and function testplatform for server applications to show operation of the 600V CoolMOS™ P7 SJ MOSFET, CoolSiC™ Schottky diode 650V G5, OptiMOS™ 40V low voltage power MOSFET, 1EDI and 2EDN EiceDRIVER™, quasi-resonant fly back controller with integrated MOSFET CoolSET™ and XMC1400/4200 microcontrollers. The evaluation board is designed around the Infineon 600V CoolMOS™ P7 4pin device and OptiMOS™ 40V technology with integrated schottky-like diode to show switching performance and power density design by using digital control. Target application is server SMPS.

• Low cost 4 layer
• 90 to 265VAC input voltage
• Greater than 95% efficiency at 230VAC
• High efficiency at 100% load
• Exceeding platinum efficiency standard
