EVAL2EDL803XF5BTOBO1
Evaluation Board, 2EDL803x-F5B, MOSFET Gate Driver
| Manufacturer | INFINEON |
|---|---|
| Manufacturer Part No | EVAL2EDL803XF5BTOBO1Copy |
| Manufacturer Standard Lead Time | 52 weeks |
| Order Code | 4670250 |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price |
|---|---|
| 1+ | HK$2,273.660 |
Product Information
| Manufacturer | INFINEON |
|---|---|
| Manufacturer Part No | EVAL2EDL803XF5BTOBO1Copy |
| Manufacturer Standard Lead Time | 52 weeks |
| Order Code | 4670250 |
| Technical Datasheet | |
| Silicon Manufacturer | Infineon |
| Silicon Core Number | 2EDL803x-F5B |
| Kit Application Type | Power Management |
| Application Sub Type | MOSFET Gate Driver |
| Kit Contents | Evaluation Board EiceDRIVER 2EDL803x-F5B |
| Product Range | - |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview

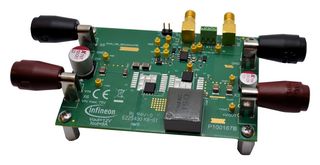

EVAL2EDL803XF5BTOBO1 is an evaluation board for EiceDRIVER™ 2EDL803x-F5B. This board featuring the EiceDRIVER™ 2EDL803x-F5B, a junction isolated high-side and low side gate driver IC. The open loop buck topology showcases the half bridge driving capability of the IC with flexibility to have user defined gate drive waveforms along with the option to evaluate wide variety of MOSFETs available across Infineon portfolio in various footprints, thus helping to reduce the design and validation time. Suitable for DC-DC power conversion for telecom infrastructure and server power supply units (PSU) applications.
- Eval of 2EDL8033-F5B & 2EDL8034-F5B
- Independent LI & HI gate drives
- Wide input voltage range from 36V to 75V
- Evaluation of basic buck topology
- SMA connectors for easy connection
- Various MOSFET package selection
- Easy access to each pins of the driver
- Large buck inductor
Technical Specifications
| Silicon Manufacturer | Infineon |
|---|---|
| Kit Application Type | Power Management |
| Kit Contents | Evaluation Board EiceDRIVER 2EDL803x-F5B |
| SVHC | No SVHC (25-Jun-2025) |
| Silicon Core Number | 2EDL803x-F5B |
|---|---|
| Application Sub Type | MOSFET Gate Driver |
| Product Range | - |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | United States Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85437090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .000001 |
