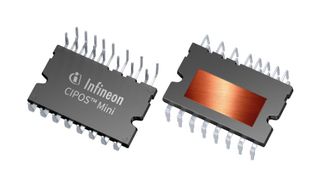

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | INFINEON |
|---|---|
| Manufacturer Part No | IM535U6DXKMA1Copy |
| Manufacturer Standard Lead Time | 30 weeks |
| Order Code | 3625309 |
| Product Range | CIPOS Mini |
| Also Known As | IM535-U6D, SP003944830 |
| Your Part Number | |
| Technical Datasheet |
1,112 In Stock
Need more?
1,112 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$172.620 |
| 5+ | HK$145.540 |
| 10+ | HK$118.460 |
| 50+ | HK$111.010 |
| 100+ | HK$103.560 |
| 250+ | HK$97.230 |
Price for:Each
Minimum: 1
Multiple: 1
HK$172.62
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | INFINEON |
|---|---|
| Manufacturer Part No | IM535U6DXKMA1Copy |
| Manufacturer Standard Lead Time | 30 weeks |
| Order Code | 3625309 |
| Product Range | CIPOS Mini |
| Also Known As | IM535-U6D, SP003944830 |
| Technical Datasheet | |
| IPM Power Device | IGBT |
| Voltage Rating (Vces / Vdss) | 600V |
| Current Rating (Ic / Id) | 30A |
| Isolation Voltage | 2kV |
| IPM Case Style | DIP |
| IPM Series | DIPIPM |
| Product Range | CIPOS Mini |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
IM535U6DXKMA1 is a CIPOS™ Mini 600V, 30A three-phase TRENCHSTOP™ IGBT based intelligent power module with open emitter in DIP 36x21D package. It provides fully featured compact inverter solution with DCB substrate to enable excellent thermal performance. Moreover, it enables higher power capability based on Infineon’s leading-edge TRENCHSTOP™ IGBTs and anti-parallel diodes together with optimized SOI gate driver along with excellent thermal conduction and electrical isolation.
- Based on TRENCHSTOP™ IGBT
- Rugged SOI gate driver technology
- Integrated bootstrap function
- Over current shutdown
- All of 6 switches turn off during protection
- Under-voltage lockout at all channels
- Sleep function
- Cross-conduction prevention
- Built-in temperature monitoring
- Motor power rating up to 3000 W at 10 kHz
Technical Specifications
| IPM Power Device | IGBT |
|---|---|
| Current Rating (Ic / Id) | 30A |
| IPM Case Style | DIP |
| Product Range | CIPOS Mini |
| Voltage Rating (Vces / Vdss) | 600V |
|---|---|
| Isolation Voltage | 2kV |
| IPM Series | DIPIPM |
| SVHC | No SVHC (04-Feb-2026) |
