| Manufacturer | INFINEON |
|---|---|
| Manufacturer Part No | TLS805B1SJVBOARDTOBO1Copy |
| Manufacturer Standard Lead Time | 28 weeks |
| Order Code | 4410914 |
| Also Known As | SP001379812 |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price |
|---|---|
| 1+ | HK$483.090 |
Product Information
| Manufacturer | INFINEON |
|---|---|
| Manufacturer Part No | TLS805B1SJVBOARDTOBO1Copy |
| Manufacturer Standard Lead Time | 28 weeks |
| Order Code | 4410914 |
| Also Known As | SP001379812 |
| Technical Datasheet | |
| Silicon Manufacturer | Infineon |
| Silicon Core Number | TLS805B1SJV |
| Kit Application Type | Power Management - Voltage Regulator |
| Application Sub Type | Low Dropout Linear Regulator |
| Kit Contents | Demonstration Board TLS805B1SJV |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview

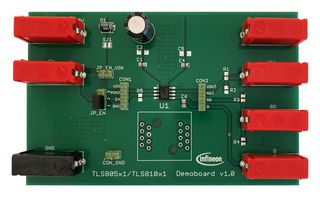

TLS805B1SJVBOARDTOBO1 is an evaluation board to evaluate TLS805B1SJV linear voltage regulator featuring wide input voltage range, low drop out voltage and ultra low quiescent current. With an input voltage range of 2.75V to 42V and ultra-low quiescent of only 5μA the regulators are perfectly suitable for automotive or any other supply systems connected permanently to the battery. The TLS805B1SJV is available in adjustable output voltage version with an accuracy of 2% and output current capability up to 50mA. TLS805B1SJV includes internal protection features like output current limitation and overtemperature shutdown. The demo board can be used in order to evaluate all family members available in the DSO-8 package. Typical applications include automotive general ECU, RKE, immobilizer, gateway, Infotainment, alarm, dashboard and application with direct battery connection and very low current consumption req.
- Designed for harsh automotive environment: excellent transient robustness, lower I/P filtering cost
- Cost optimized ceramic output capacitance of 1µF
- Energy efficiency: save battery resources in stand-by with ultra low quiescent current
- 50mA current capability
- Adjustable output from 1.2V to VIN - VDROP
- Low dropout voltage of 100mV at 50mA
- Very low shutdown current of 1μA
- Wide temperature range from -40°C < Tj < 150°C
- Stable with 1μF output capacitor
- AEC qualified
Technical Specifications
| Silicon Manufacturer | Infineon |
|---|---|
| Kit Application Type | Power Management - Voltage Regulator |
| Kit Contents | Demonstration Board TLS805B1SJV |
| SVHC | No SVHC (04-Feb-2026) |
| Silicon Core Number | TLS805B1SJV |
|---|---|
| Application Sub Type | Low Dropout Linear Regulator |
| Product Range | - |
Technical Docs (2)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Germany Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84733020 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | No |
| RoHS Phthalates Compliant: | No |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .18 |
