| Manufacturer | INFINEON |
|---|---|
| Manufacturer Part No | TLS850C2TEV33BOARDTOBO1Copy |
| Manufacturer Standard Lead Time | 28 weeks |
| Order Code | 3865681 |
| Also Known As | SP005567500, TLS850C2TE V33 BOARD |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price |
|---|---|
| 1+ | HK$483.090 |
Product Information
| Manufacturer | INFINEON |
|---|---|
| Manufacturer Part No | TLS850C2TEV33BOARDTOBO1Copy |
| Manufacturer Standard Lead Time | 28 weeks |
| Order Code | 3865681 |
| Also Known As | SP005567500, TLS850C2TE V33 BOARD |
| Technical Datasheet | |
| Silicon Manufacturer | Infineon |
| Silicon Core Number | TLS850C2TEVxx |
| Kit Application Type | Power Management |
| Application Sub Type | Linear Regulator |
| Kit Contents | Demo Board TLS850C2TEVxx |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview

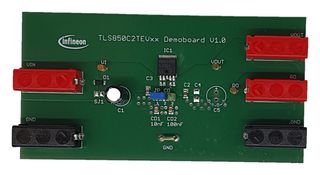

TLS850C2TEV33BOARDTOBO1 is a TLS850C0TEV33 high performance 500mA low dropout voltage regulator demonstration board. Demo board enables evaluation of Infineon’s latest high performance automotive LDO of the OPTIREG™ family. With an input voltage range of 3V to 40V and very this regulator is perfectly suitable for automotive or other supply systems permanently connected to battery. The very low quiescent current of only 20µA makes the TLS850C2TE particularly suitable for always-on applications. The reset feature supervises the output voltage, including under-voltage reset and delayed reset at power-on. Suitable for body and comfort applications, dashboard and cluster supply, body control module (BCM), gateway, HVAC, always-on battery-connected applications, Powertrain and EPS.
- Plug and play evaluation capability
- Easy verification and configuration, save design time
- Easy-to-use banana connectors
- Selectable reset delay timings
- Test points for advanced verification
- Placeholder sockets for additional output capacitance
- AEC qualified
- Demonstrate the capabilities of TLS850C2TE V33 (3.3V voltage variant)
- Overtemperature shutdown and output current limit protection
- Allow easy application adaption for evaluation
Technical Specifications
| Silicon Manufacturer | Infineon |
|---|---|
| Kit Application Type | Power Management |
| Kit Contents | Demo Board TLS850C2TEVxx |
| SVHC | No SVHC (04-Feb-2026) |
| Silicon Core Number | TLS850C2TEVxx |
|---|---|
| Application Sub Type | Linear Regulator |
| Product Range | - |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Germany Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84733020 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .24 |
