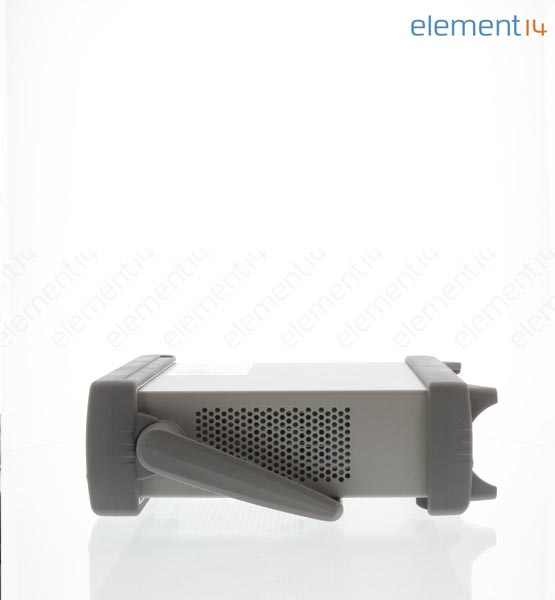

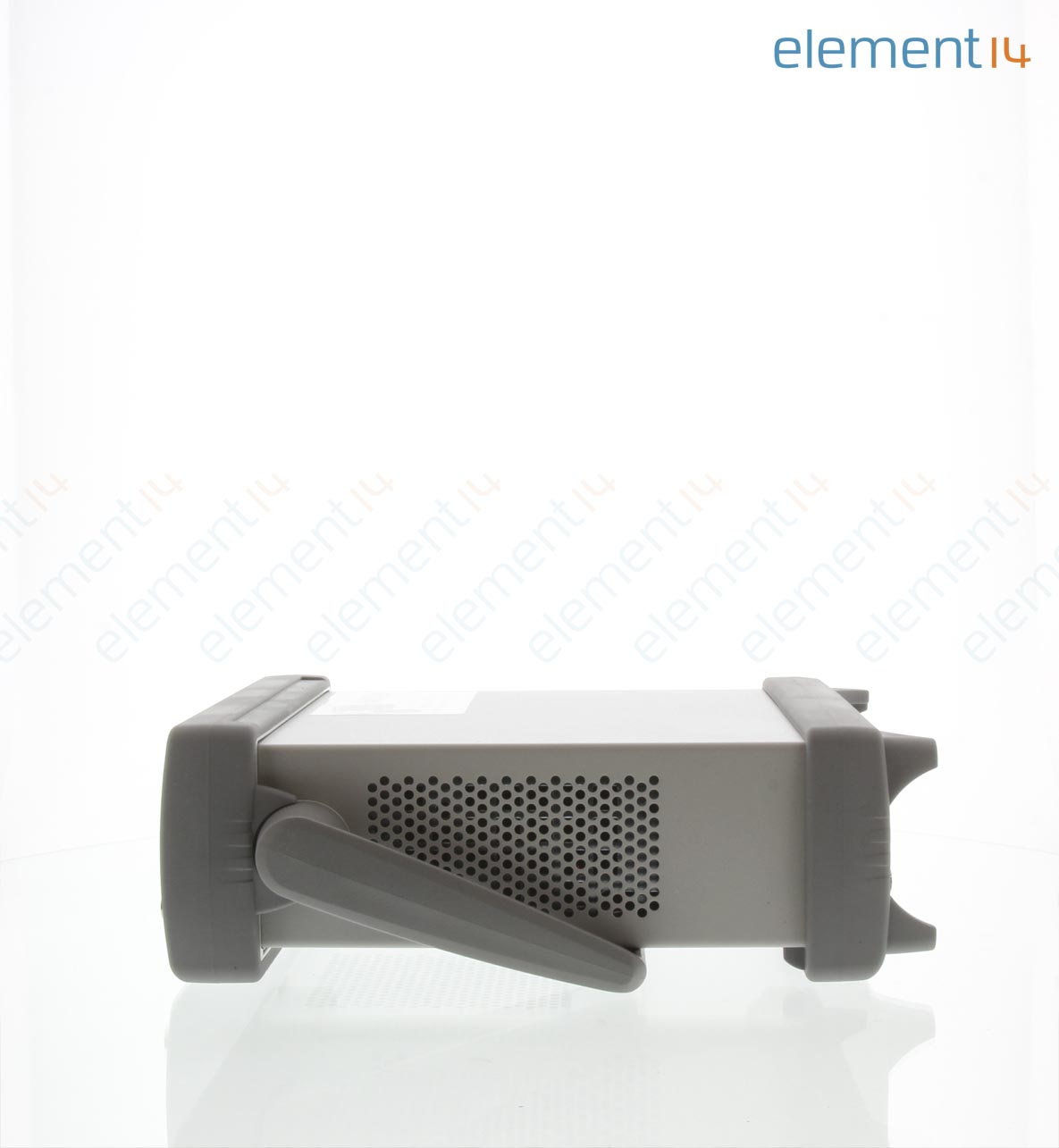

33510B

33510B is a dual channel, 20MHz waveform generator provides exclusive Trueform technology which offers unmatched capabilities for generating a full range of signals for your most demanding measurements. It offers the standard signals and features you expect, such as modulation, sweep, and burst. However, it also provides features that give you the capabilities and flexibility you need to get your job done quickly, no matter how complex.

• 4.3inch colour TFT, WQVGA (480x272) with LED backlight graphical display
• Built-in modulation and 17 popular waveforms
• Full bandwidth sine and square waves
• Lowest total harmonic distortion (THD) in its class
• Sine waves with 5x lower harmonic distortion for more pure signals
• Pulses up to 20MHz with 10x less jitter for more precise timing
• 160MSa/s sampling rate for higher time resolution arbitrary waveforms
• 16bit resolution with 1mVpp to 10Vpp amplitude for greater amplitude accuracy
• USB, LAN (LXI-C), GPIB standard for quick and easy connectivity to PC or network
• Features ease of use, signal integrity, pulse generator and 2-channel coupling

Notes

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
