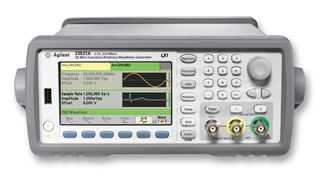

33522A
Function Generator, Arbitrary, 2 Channel, 30 MHz
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | KEYSIGHT TECHNOLOGIES |
|---|---|
| Manufacturer Part No | 33522ACopy |
| Order Code | 1824825 |
| Product Range | 33500 Series |
| Your Part Number | |
| Technical Datasheet |
No Longer Manufactured
Product Information
| Manufacturer | KEYSIGHT TECHNOLOGIES |
|---|---|
| Manufacturer Part No | 33522ACopy |
| Order Code | 1824825 |
| Product Range | 33500 Series |
| Technical Datasheet | |
| Signal Generator Type | Arbitrary, Function |
| No. of Channels | 2 Channel |
| Product Range | 33500 Series |
| Bandwidth | 30MHz |
| Signal Generator Modulation | AM, BPSK, FM, FSK, PM, PWM, Sum |
| Manufacturer Warranty | 1 Year |
| Plug Type | EU, UK |
| SVHC | No SVHC (15-Jun-2015) |
Product Overview
Keysight 33500 Series function/arbitrary waveform generators offer the highest signal fidelity and implement a new breakthrough technology that provides you with the ability to generate more accurate arbitrary waveforms. With 10x better jitter than anything in their class, they offer unparalleled control of signal frequency for your most challenging measurements.
- 30 MHz sine, square, and pulse bandwidth cover more applications
- <lt/> 40 ps jitter and less than .04% total harmonic distortion for more precise signals
- 250 MSa/s, 16-bit sampling rate for higher time-resolution arbitrary waveforms
- Point-by-point arbitrary waveforms sequencing for accurate representation of user-defined signals
- Dual-channel mode with independent or coupled channels
- 1 MSa waveform memory
- LXI Class C compliant
- Large, colour, graphical display for simultaneous parameter setup and signal viewing/editing
- Optional BenchLink Waveform Builder Pro software for custom user-defined waveforms
Applications
Sensing & Instrumentation, Signal Processing, Test & Measurement
Technical Specifications
| Signal Generator Type | Arbitrary, Function |
|---|---|
| Product Range | 33500 Series |
| Signal Generator Modulation | AM, BPSK, FM, FSK, PM, PWM, Sum |
| Plug Type | EU, UK |
| No. of Channels | 2 Channel |
|---|---|
| Bandwidth | 30MHz |
| Manufacturer Warranty | 1 Year |
| SVHC | No SVHC (15-Jun-2015) |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Malaysia Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 90308930 |
| US ECCN: | 3A992.a |
| EU ECCN: | NLR |
| RoHS Compliant: | Not applicable |
| RoHS Phthalates Compliant: | Not applicable |
| SVHC: | No SVHC (15-Jun-2015) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | 3 |
