DAQM902A

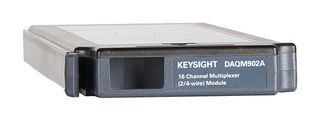

DAQM902A is a 16-channel multiplexer (2 / 4-Wire) module for DAQ970A and DAQ973A data acquisition system. This module employs reed relays to achieve scan rates up to 250 channels-per-second. Use this module for high-throughput automated test applications as well as high-speed data logging and monitoring tasks. Sixteen two-wire inputs switch up to 300V. You can also mix two- and four-wire channels on the same module. Current measurements require user-provided shunt resistors.

• 16-channel multiplexer
• Two- and four-wire scanning
• 250ch/s scanning
• Built-in thermocouple reference junction

Contents

Multiplexer module, Certificate of calibration.

Notes

In addition, we have calibration services for this product (Europe Only). You will need to order the multiplexer with this item if calibration required. Visit our calibration service page to see details of what options are available.
