U1561B

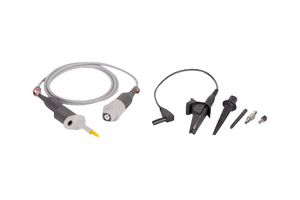

Oscilloscope Probe, 1.2m, Passive, 500 MHz, 1 kV, 10:1
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | KEYSIGHT TECHNOLOGIES |
|---|---|
| Manufacturer Part No | U1561BCopy |
| Order Code | 2769504 |
| Product Range | U1600 Series |
| Your Part Number | |
| Technical Datasheet |
No Longer Manufactured
Product Information
| Manufacturer | KEYSIGHT TECHNOLOGIES |
|---|---|
| Manufacturer Part No | U1561BCopy |
| Order Code | 2769504 |
| Product Range | U1600 Series |
| Technical Datasheet | |
| Oscilloscope Probe Function | Passive |
| Bandwidth | 500MHz |
| Input Voltage Max | 1kV |
| Test Probe Attenuation | 10:1 |
| For Use With | Keysight U1600A Series Handheld Digital Oscilloscopes |
| Product Range | U1600 Series |
| SVHC | To Be Advised |
Product Overview
U1561B is a 10:1, 500MHz passive probe. U1561B scope probe enhanced performance caters for a large bandwidth and a higher safety rating compared to U1561A. The passive probe is compatible with the U1600A Series Handheld Digital Oscilloscope.
- Safety rated for Cat III 1000V
- Input capacitance is +12pF
- 1.2m cable length
- Operating temperature range from 0°C to 50°C
- Rise time is less than 1ns
- Input impedance is 10Mohm
Technical Specifications
| Oscilloscope Probe Function | Passive |
|---|---|
| Input Voltage Max | 1kV |
| For Use With | Keysight U1600A Series Handheld Digital Oscilloscopes |
| SVHC | To Be Advised |
| Bandwidth | 500MHz |
|---|---|
| Test Probe Attenuation | 10:1 |
| Product Range | U1600 Series |
Technical Docs (2)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 90309000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | To Be Advised |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .453592 |
