RAA-S4B-6.0-50-NP-2.0-C9-T (PACK OF 10)
RTD Sensor, Class B, 6 mm Dx50 mm L Probe, 1 m Cable, Probe with Leads
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | LABFACILITY |
|---|---|
| Manufacturer Part No | RAA-S4B-6.0-50-NP-2.0-C9-T (PACK OF 10)Copy |
| Manufacturer Standard Lead Time | 16 weeks |
| Order Code | 4382308 |
| Also Known As | XF-2920-FAR |
| Your Part Number | |
| Technical Datasheet |
3 In Stock
Need more?
3 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$3,755.560 |
| 5+ | HK$3,632.430 |
| 10+ | HK$3,559.790 |
Price for:Pack of 10
Minimum: 1
Multiple: 1
HK$3,755.56
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | LABFACILITY |
|---|---|
| Manufacturer Part No | RAA-S4B-6.0-50-NP-2.0-C9-T (PACK OF 10)Copy |
| Manufacturer Standard Lead Time | 16 weeks |
| Order Code | 4382308 |
| Also Known As | XF-2920-FAR |
| Technical Datasheet | |
| RTD Type | Probe with Leads |
| Sensing Temperature Min | -50°C |
| Sensing Temperature Max | 200°C |
| RTD Accuracy | - |
| Measured Temperature Min | - |
| Measured Temperature Max | - |
| Resistance @ 0°C | - |
| RTD Element Material | - |
| Probe Material | - |
| Probe Diameter | - |
| Probe Length | - |
| Cable Length - Metric | - |
| Cable Length - Imperial | - |
| Cable Termination | - |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview

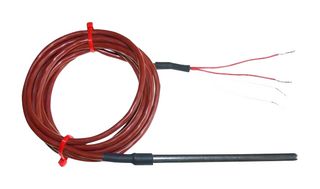

RAA-S4B-6.0-50-NP-2.0-C9-T (PACK OF 10) is a general purpose Pt100 silicone rubber lead -Type RTD / PRT.
- Pt100 (100 ohm at 0°C) to IEC 751, Class B, 4 wire sensor type
- 4 wires, 6mm probe diameter
- 316 stainless steel sheath material
- 2m cable length
- Flexible silicone rubber insulated cable type
- 7/0.2mm core/strands
- Bare tail cable termination
- Maximum temperature is +200°C, minimum temperature is -50°C
- Class B accuracy
- 50mm sheath length
Contents
Pack of 10.
Technical Specifications
| RTD Type | Probe with Leads |
|---|---|
| Sensing Temperature Max | 200°C |
| Measured Temperature Min | - |
| Resistance @ 0°C | - |
| Probe Material | - |
| Probe Length | - |
| Cable Length - Imperial | - |
| Product Range | - |
| Sensing Temperature Min | -50°C |
|---|---|
| RTD Accuracy | - |
| Measured Temperature Max | - |
| RTD Element Material | - |
| Probe Diameter | - |
| Cable Length - Metric | - |
| Cable Termination | - |
| SVHC | No SVHC (04-Feb-2026) |
Alternatives for RAA-S4B-6.0-50-NP-2.0-C9-T (PACK OF 10)
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Great Britain Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369010 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .00001 |
