CM5740Z241B-10
Choke, Common Mode, 20 A

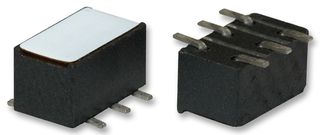

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | LAIRD |
|---|---|
| Manufacturer Part No | CM5740Z241B-10Copy |
| Manufacturer Standard Lead Time | 28 weeks |
| Order Code | EACH 2292344 EACH 2292344RL |
| Product Range | CM5740 Series |
| Your Part Number | |
| Technical Datasheet |
1,214 In Stock
825 more incoming. You can reserve stock now
1,214 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$64.470 |
| 50+ | HK$50.540 |
| 100+ | HK$48.690 |
| 250+ | HK$46.450 |
| 500+ | HK$42.370 |
| 825+ | HK$42.280 |
Price for:Each
Minimum: 1
Multiple: 1
HK$64.47
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | LAIRD |
|---|---|
| Manufacturer Part No | CM5740Z241B-10Copy |
| Manufacturer Standard Lead Time | 28 weeks |
| Order Code | EACH 2292344 EACH 2292344RL |
| Product Range | CM5740 Series |
| Technical Datasheet | |
| Inductance | - |
| DC Current Rating | 20A |
| DC Resistance Max | 1300µohm |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 125°C |
| Product Range | CM5740 Series |
| SVHC | No SVHC (07-Nov-2024) |
Product Overview
The CM5740Z241B-10 is a low frequency power filtering Common Mode Choke construction provides for a more lean then comparable larger, heavier, wire-wound toroid inductor suitable for power supply filtering and other low frequency applications.
- Excellent low frequency attenuation of common mode noise
- Up to 75A continuous operation capabilities
- Broadband filtering at high current
- Low DCR
Applications
Industrial, Power Management
Technical Specifications
| Inductance | - |
|---|---|
| DC Resistance Max | 1300µohm |
| Operating Temperature Max | 125°C |
| SVHC | No SVHC (07-Nov-2024) |
| DC Current Rating | 20A |
|---|---|
| Operating Temperature Min | -40°C |
| Product Range | CM5740 Series |
Technical Docs (2)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85045000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (07-Nov-2024) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .00538 |
