2170489

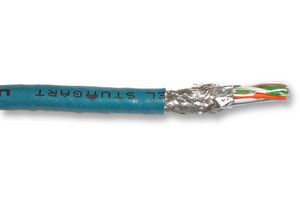

The 2170489 is a 4-pair Industrial Ethernet Cable with copper conductor, water blue PU jacket and 26AWG wire. The ETHERLINE® FD P CAT.5e industrial Ethernet cable for high flexible applications. Seamless communication from the sensor/actuator level to the Internet. High-quality, double screening ensures high transmission reliability in areas with electromagnetic interference. The ETHERLINE® FD P Cat.5e 4 x 2 x 26/19AWG is a CAT-5e high speed data transmission cable, meets the requirements of standards EIA/TIA-568, TSB-36 and ISO/IEC 11801, "Generic Cabling for Customer Premises" for CLASS D Links. The high quality screen ensures high transmission reliability of data transfer in electromagnetically polluted areas. The PUR sheath is widely resistant against mineral oils and abrasion.

• CPR: Not Yet Qualified
• Very low installation cost due to use of Ethernet cables
• Screened against interference
• 19-wire, braided conductor
• Thermoplastic elastomer (halogen-free) inner sheath
• Wrapped screening with braided tinned-copper wires
• PUR outer sheath resists highly mineral oil and abrasion
• Halogen-free outer sheath
• CAT.5e performance

Applications

Automation & Process Control, Industrial, Communications & Networking, Power Management
