| Manufacturer | LASCAR |
|---|---|
| Manufacturer Part No | SP300Copy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 9932798 |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price |
|---|---|
| 1+ | HK$335.730 |
| 5+ | HK$309.900 |
Product Information
| Manufacturer | LASCAR |
|---|---|
| Manufacturer Part No | SP300Copy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 9932798 |
| Technical Datasheet | |
| No. of Digits / Alpha | 3.5 |
| Meter Function | DC Millivolts |
| Meter Range | 0mV to 200mV |
| Digit Height | 9.4mm |
| Panel Cutout Height | 21.3mm |
| Panel Cutout Width | 34mm |
| Supply Voltage Min | 4.75V |
| Supply Voltage Max | 5.25V |
| Operating Temperature Min | 0°C |
| Operating Temperature Max | 50°C |
| Product Range | - |
| SVHC | No SVHC (07-Nov-2024) |
Product Overview

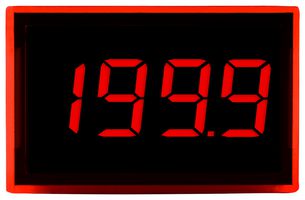

SP300 is an ultra-low-profile LED voltmeter with an 8-pin configuration. It features a 3½-digit LED display with 9.4mm-high digits and offers a 200mV DC full-scale reading, along with auto-zero and auto-polarity functions. The meter plugs directly into an 8-way SIL socket and can be easily panel-mounted using the supplied fixing clip. Splash-proof protection is achieved by fitting the included seal, ensuring reliable performance in demanding environments. The SP300 also incorporates a negative rail generator, allowing measurement of signals referenced to its own 0V power supply. Its bright LED display ensures excellent visibility in low-light conditions. Designed for ease of installation and versatility, the module is suitable for both high- and low-volume applications. Its robust housing and sealing design provide dependable splash resistance, making it a popular, well-stocked choice for new and existing designs alike.
- Programmable decimal points
- Simplified connection
Technical Specifications
| No. of Digits / Alpha | 3.5 |
|---|---|
| Meter Range | 0mV to 200mV |
| Panel Cutout Height | 21.3mm |
| Supply Voltage Min | 4.75V |
| Operating Temperature Min | 0°C |
| Product Range | - |
| Meter Function | DC Millivolts |
|---|---|
| Digit Height | 9.4mm |
| Panel Cutout Width | 34mm |
| Supply Voltage Max | 5.25V |
| Operating Temperature Max | 50°C |
| SVHC | No SVHC (07-Nov-2024) |
Technical Docs (3)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 90303370 |
| US ECCN: | 3A992.a |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (07-Nov-2024) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .02 |
