PHG.0B.304.CLLD52Z

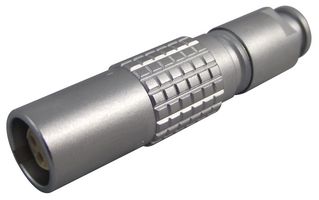

Circular Connector, Standard Circular Connector, 0B Series, Cable Mount Receptacle, 4 Contacts
25 more incoming. You can reserve stock now
| Quantity | Price |
|---|---|
| 1+ | HK$269.200 |
| 10+ | HK$251.380 |
| 25+ | HK$235.650 |
| 100+ | HK$213.710 |
| 250+ | HK$200.340 |
| 500+ | HK$196.340 |
Product Information
Product Overview
The PHG.0B.304.CLLD52Z is a 4-way Circular Connector, 0B series, free receptacle with cable collet and nut for fitting a bend relief. Single key, male (plug) contacts and female (socket) contacts. Push-pull self-latching system with four solder contacts. Chrome-plated brass shell and collet nut, nickel plated brass latch sleeve and mid pieces. The modular design of the 0B series connector offers a solution for most applications. The push pull latching mechanism provides a secure connection whilst the density of the contacts provides for considerable panel space savings. Multi key options prevent cross mating of similar connectors within a panel. The ruggedized design combined with precision manufacturing offers excellent durability, reliability and quality.
- 7A Current rating
- PEEK insulator
- G Key standard
- IP50 Protection rating
- 5000 Maximum matings
- 6.1mΩ Maximum resistance
- 0.7mm Contact diameter
- 360° Screening for full EMC shielding
- 4 Low voltage insert configuration
Applications
Test & Measurement, Medical, Aerospace, Defence, Military, Automotive, Communications & Networking
Technical Specifications
Standard Circular Connector
Cable Mount Receptacle
Solder Socket
Brass Body
-
IP50
0B Series
4Contacts
Push-Pull
Chrome
-
No SVHC (14-Jun-2023)
