0466.250NR
Fuse, Surface Mount, 250 mA, Very Fast Acting, 125 VAC, 125 VDC, 1206 [3216 Metric], 466 Series

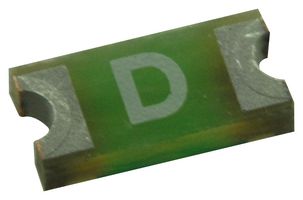

![LITTELFUSE 0466.250NR Fuse, Surface Mount, 250 mA, Very Fast Acting, 125 VAC, 125 VDC, 1206 [3216 Metric], 466 Series](https://hk.element14.com/productimages/standard/en_GB/9921826-40.jpg)
Need more?
| Packaging Type | Quantity | Unit Price: | Total |
|---|---|---|---|
| Cut Tape | 10 | HK$11.180 | HK$111.80 |
| Total Price | HK$111.80 | ||
| Quantity | Price |
|---|---|
| 10+ | HK$11.180 |
| 100+ | HK$9.780 |
| 500+ | HK$8.100 |
| 1000+ | HK$7.270 |
| 2500+ | HK$6.700 |
| Quantity | Price |
|---|---|
| 5000+ | HK$6.560 |
| 25000+ | HK$5.740 |
| 50000+ | HK$4.840 |
Product Information
Product Overview
The 0466.250NR is a 0.25A/125V very fast acting surface mount Fuse with advanced high temperature substrate body, 100% tin plated over nickel over copper termination and conformal coating element cover. The 466-series small (1206 size) thin-film device is designed for secondary protection of circuits used in space constrained applications. Alloy-based element construction provides superior inrush withstand characteristics (I²t) over ceramic or glass-based 1206 chip fuse products. Flat top surface for pick-and-place operations. Product is marked on top surface with code to allow amperage rating identification without testing. Low profile for height sensitive applications. This fuse is compatible with lead-free solders and higher temperature profiles.
- Alloy based element construction
- Flat top surface for pick-and-place operations
- Low profile for height sensitive applications
- 207.01mV Nominal voltage drop
- 0.0518W Nominal power dissipation
- 0.691Ω Nominal cold resistance
- -55 to 90°C Operating temperature range
Applications
Safety, Portable Devices, Consumer Electronics, Computers & Computer Peripherals
Technical Specifications
250mA
125VAC
1206 [3216 Metric]
50A
No SVHC (23-Jan-2024)
Very Fast Acting
125VDC
466 Series
50A
Technical Docs (2)
Alternatives for 0466.250NR
1 Product Found
Associated Products
2 Products Found
Legislation and Environmental
Country in which last significant manufacturing process was carried outCountry of Origin:Philippines
