55100-3M-03-A

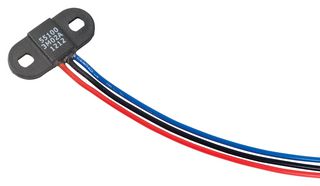

Hall Effect Proximity Sensor, Flange Mount, Sink, Wire Leads, 12.5 mm, 3.8 to 24 VDC, 55100 Series
Image is for illustrative purposes only. Please refer to product description.
ManufacturerLITTELFUSE
Manufacturer Part No55100-3M-03-ACopy
Manufacturer Standard Lead Time40 weeks
Order Code4209273
Your Part Number
222 In Stock
500 more incoming. You can reserve stock now
222 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$82.950 |
| 10+ | HK$74.210 |
| 25+ | HK$71.700 |
| 50+ | HK$70.530 |
| 100+ | HK$69.350 |
Price for:Each
Minimum: 1
Multiple: 1
HK$82.95
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerLITTELFUSE
Manufacturer Part No55100-3M-03-ACopy
Manufacturer Standard Lead Time40 weeks
Order Code4209273
Technical Datasheet
Sensor TypeProximity Sensor
Sensing Range Max12.5mm
Activating Distance Min13mm
Supply Voltage DC Min3.8V
Activating Distance Max-
Supply Voltage DC Max24V
Sensor MountingFlange
Output ConfigurationSink
Output Voltage400mV
Sensor TerminalsWire Leads
Switching Speed0.1ms
Operating Temperature Min-40°C
Operating Temperature Max100°C
Technical Specifications
Sensor Type
Proximity Sensor
Activating Distance Min
13mm
Activating Distance Max
-
Sensor Mounting
Flange
Output Voltage
400mV
Switching Speed
0.1ms
Operating Temperature Max
100°C
Sensing Range Max
12.5mm
Supply Voltage DC Min
3.8V
Supply Voltage DC Max
24V
Output Configuration
Sink
Sensor Terminals
Wire Leads
Operating Temperature Min
-40°C
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Mexico
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Mexico
Country in which last significant manufacturing process was carried out
Tariff No:85365080
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.00637
