Product Overview

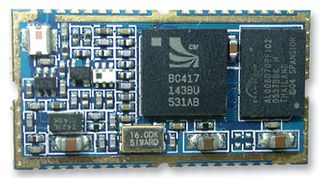

LM-071 is an class 2 BC04 Bluetooth module. This module is CSR BC04 class 2 module with no antenna, an operating voltage range is from 3.0V to 3.6V and an operating data range of 20 - 40m. This module is provided with Bluetooth v2.0+EDR compliant SPP firmware and can be configured using our set of AT commands sent over UART.
  • The module is a Max 4dBm (Class2) module
  • Bluetooth standard v2.0 + EDR specification
  • Low current consumption operating on Hold, Sniff, Park, Deep Sleep Mode
  • Ideal for embedded systems, Low power
  • Support for up to 7 ACL links and 3 SCO links (HCI mode firmware)
  • Interface: USB, UART & PCM (for VOICE CODEC)
  • SPP firmware available by default. Also offered HID firmware
  • Support for 802.11 Co-existence
  • No Host Stack required
  • External Antenna


Wireless, Portable Devices, Industrial, Consumer Electronics

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×

Bluetooth 2.0 + EDR





Class 1





Find similar products Choose and modify the attributes above to find similar products.
