LM400

Class 1 BC04 Bluetooth® Module Supporting up to 7 ACL links and 3 SCO links

LM TECHNOLOGIES LM400
×

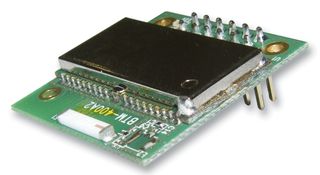

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
LM400
Order Code:
1675407
Technical Datasheet:
LM400   Datasheet
See all Technical Docs

Product Overview

LM400 is a long range 12 pin plug and play Bluetooth module with on-board chip antenna for 3.0V to 3.6V voltage operation. This module is CSR BC04 Class 1 module with on-board chip antenna. This module comes with a 12 pin header for easy plug and play integration on customer platform. It is suitable for serial port applications over a range of 100m and comes with Bluetooth v2.0+EDR compliant SPP firmware. It can be configured using our set of AT Commands sent over UART. This module has been integrated with thermal printers.
  • Used in LM Technologies Ltd thermal printer
  • Bluetooth v2.0 + EDR compliant backward compatible with Bluetooth v1.2/1.1 specification
  • Full Bluetooth Data rate up to 3Mbps
  • Class 1 Radio with 100m range in open space
  • Single onboard antenna connector support (optional)
  • Onboard chip antenna
  • Easy Plug n Play integration
  • Excellent solution to integrate wireless connectivity to a product for long range connectivity
  • All the firmware and hardware design developed and owned by LM Technologies Ltd
  • Supports 7 ACL links and 3 SCO links (HCI mode firmware)

Applications

Wireless, Portable Devices, Industrial, Consumer Electronics

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
Bluetooth 2.0 + EDR

:
2.7V

:
3.6V

:
-

:
3Mbps

:
Class 1

:
-88dBm

:
-20°C

:
75°C

:
-

Find similar products Choose and modify the attributes above to find similar products.
