LM910-0630

Class 1 Low Energy USB Bluetooth® v4.1 Module, + EDR, 2.4 to 2.4835GHz

LM TECHNOLOGIES LM910-0630
×

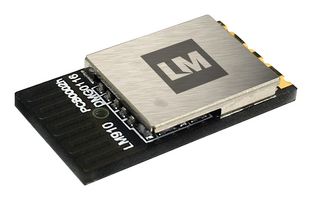

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
LM910-0630
Order Code:
2484548
Technical Datasheet:
LM910-0630   Datasheet
See all Technical Docs

Product Overview

The LM910-0630 is a dual mode Bluetooth 4.1/HCI Compact USB SMT Module with 110m maximum estimated distance with integrated antenna. Its exceptional performance will allow users to connect up to 110m via Bluetooth 4.1, Classic, EDR and LE standards. This is a very small form factor and high performance module which allows you to connect to up to 7 Bluetooth devices simultaneously. The module is backward compatible with Bluetooth 2.0 and Bluetooth 2.1 + EDR devices and also supports connection to Bluetooth 3.0 and Bluetooth low energy devices (BLE). The module integrates high performance Bluetooth radio, baseband, link manager, host controller interface and is compatible with all Bluetooth stacks. The LM910 is ideally suited for Bluetooth connectivity to serial adapters, laptops, PC's, Bluetooth low energy devices and mono and stereo headsets.
  • Smart ready
  • Dual-mode with integrated antenna
  • USB interface only
  • PLC packet loss concealment
  • iBeacon compatible
  • Low power consumption
  • Excellent compatibility
  • Powered from USB only

Applications

Wireless, Communications & Networking

Warnings

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
Bluetooth 4.1 + EDR

:
-

:
5V

:
110m

:
3Mbps

:
Class 1

:
-86dBm

:
-20°C

:
75°C

:
-

Find similar products Choose and modify the attributes above to find similar products.
