SDS9Z
D Sub Connector, DB9, Standard, Receptacle, Standard D, 9 Contacts, DE, Solder

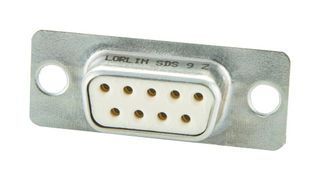

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | LORLIN |
|---|---|
| Manufacturer Part No | SDS9ZCopy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 1132410 |
| Product Range | Standard D |
| Your Part Number | |
| Technical Datasheet |
1,005 In Stock
Need more?
1,005 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$48.520 |
| 10+ | HK$43.040 |
| 100+ | HK$38.850 |
| 250+ | HK$36.380 |
| 500+ | HK$34.730 |
| 1000+ | HK$32.880 |
Price for:Each
Minimum: 1
Multiple: 1
HK$48.52
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | LORLIN |
|---|---|
| Manufacturer Part No | SDS9ZCopy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 1132410 |
| Product Range | Standard D |
| Technical Datasheet | |
| D Sub Connector Type | Standard |
| Gender | Receptacle(View Associated Connectors) |
| Product Range | Standard D |
| No. of Contacts | 9Contacts |
| D Sub Shell Size | DE |
| Contact Termination Type | Solder |
| Connector Mounting | Through Hole Mount |
| Contact Material | Copper Alloy |
| Contact Plating | Gold Plated Contacts |
| Connector Body Material | Steel Body |
| SVHC | No SVHC (21-Jan-2025) |
Product Overview
The SDS9Z is a 9-way D-sub Socket, standard D series, made of steel with yellow passivation over zinc plate, gold-plated contacts. Also feature dimples to enhance continuity and provide good EMI/RFI shielding. Two part thermoplastic mouldings, Flame retardant to UL94V-O insulators. Copper alloy, gold-plated over nickel contacts. 90° right angled pins for flow soldering onto a printed circuit board.
- 5A Current rating
- 500 Mating cycles
- 5mΩ Maximum contact resistance
- 500VDC/AC Peak operating voltage
- 1500VDC/AC Peak breakdown voltage
Applications
Sensing & Instrumentation, Computers & Computer Peripherals
Technical Specifications
| D Sub Connector Type | Standard |
|---|---|
| Product Range | Standard D |
| D Sub Shell Size | DE |
| Connector Mounting | Through Hole Mount |
| Contact Plating | Gold Plated Contacts |
| SVHC | No SVHC (21-Jan-2025) |
| Gender | Receptacle |
|---|---|
| No. of Contacts | 9Contacts |
| Contact Termination Type | Solder |
| Contact Material | Copper Alloy |
| Connector Body Material | Steel Body |
Technical Docs (1)
Alternatives for SDS9Z
1 Product Found
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | India Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85366990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Y-Ex RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (21-Jan-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .006 |
