Product Information
| Manufacturer | LUMEX |
|---|---|
| Manufacturer Part No | SSI-LXH312ID-150Copy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 2062420 |
| Technical Datasheet | |
| LED Colour | Red |
| Operating Voltage | 2VDC |
| Mounting Hole Dia | 4mm |
| Forward Current If | 20mA |
| Luminous Intensity | 30mcd |
| IP / NEMA Rating | Not Rated |
| Product Range | - |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview

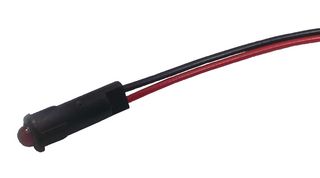

The SSI-LXH312ID-150 is a high intensity red LED Panel Mount Indicator made of GaAsP die and red diffused lens. It features state-of-the-art, high brightness LED chip technology, easy installation through panel and blinking LED. It also features 635nm peak wavelength and 60° viewing angle.
- Holder - Black, Nylon 94-V
- Anode Lead - 26AWG, Cut 158mm long, Strip - 3.0mm & 6.0mm
- Cathode Lead - 26AWG, Cut 158mm long, Strip - 3.0mm & 6.0mm
- Mounting hole - DIA 4.3 mm - 4.4mm
Applications
LED Lighting, Security, Medical, Automation & Process Control
Technical Specifications
| LED Colour | Red |
|---|---|
| Mounting Hole Dia | 4mm |
| Luminous Intensity | 30mcd |
| Product Range | - |
| Operating Voltage | 2VDC |
|---|---|
| Forward Current If | 20mA |
| IP / NEMA Rating | Not Rated |
| SVHC | No SVHC (25-Jun-2025) |
