LUMILEDS L2M0-4070004MC3300

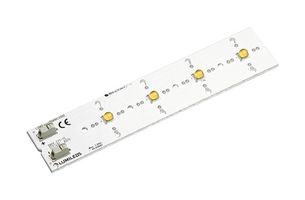

LED Module, LUXEON XR-M, Board + LED + Connector, White, 4000 K, 4211 lm

LUMILEDS L2M0-4070004MC3300
×

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
LUMILEDS LUMILEDS
Manufacturer Part No:
L2M0-4070004MC3300
Order Code:
2834425
  • Enter your custom part number in the textbox above
  • Maximum Part Numbers added.
    Delete older entries to add more.

Part Number Saved

Part Number Saved

Product Range
LUXEON XR-M
ECAD / MCAD
Supply Frame Models Link
See all Technical Docs

Product Range Selector (LUXEON XR-M)

See all from this product range

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
LUXEON XR-M

:
Board + LED + Connector

:
White

:
4000K

:
4211lm

:
-

:
-

:
-

:
700mA

:
Linear

:
-40°C

:
85°C

:
MSL 1 - Unlimited

Find similar products Choose and modify the attributes above to find similar products.

Technical Documents (1)

Product Overview

LUXEON XR-M series LED module optimized for lighting applications requiring high power LED array mounted on a rigid and thermally conductive substrate.
  • 4000K CCT with 70 CRI minimum
  • May be used with off-the-shelf individual lenses and lens plates for easy system integration
  • Constant board-to-board LED pitch for versatile system design
  • 4 LED linear board for design flexibility and luminaire adaptability
  • MCPCB for efficient heat dissipation and mechanical robustness
  • 5 year limited warranty
  • 165mm x 33mm dimension
