MEAN WELL DPU-3200-48

AC/DC Converter, ITE, 3.216kW, Fixed/Adjustable, 48V, 67A, 1U Rack Mount

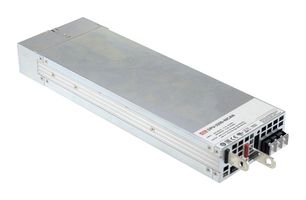

MEAN WELL DPU-3200-48
×

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
MEAN WELL MEAN WELL
Manufacturer Part No:
DPU-3200-48
Order Code:
3002849
  • Enter your custom part number in the textbox above
  • Maximum Part Numbers added.
    Delete older entries to add more.

Part Number Saved

Part Number Saved

Technical Datasheet:
DPU-3200-48   Datasheet
ECAD / MCAD
Supply Frame Models Link
See all Technical Docs

Product Range Selector (DPU-3200 Series)

See all from this product range

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
ITE

:
1 Output

:
Adjustable, Fixed

:
3.126kW

:
48V

:
67A

:
DPU-3200 Series

:
90V AC to 264V AC

Find similar products Choose and modify the attributes above to find similar products.

Technical Documents (2)

Product Overview

DPU-3200-48 is a DPU-3200 series 3200W power supply with single output enclosed type AC/DC with 1U low profile and a high power density up to 37W/inch3 . This model is cooled by the thermostatically controlled fan. It provides vast design flexibility by equipping various built-in functions such as output programming, active current sharing, remote ON-OFF control, auxiliary power. It includes short circuit, overvoltage, overload, over temperature protection. Application includes factory control or automation apparatus, test and measurement instrument, laser related machine, aging facility, digital broadcasting, constant current source, redundant system. Approved by UL62368-1, CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, EAC TP TC 004.
  • Input voltage range from 18 to 75VDC, output DC voltage is 48V
  • Output rated current is 67A, output rated power is 3216W, typical efficiency is 94.5%
  • Universal AC input / full range, built-in active PFC function
  • Forced air cooling by built-in DC fan
  • Active current sharing up to 16000W (4+1)
  • Optional conformal coating
  • Optional PMBus or CANBus protocol
  • 5 years warranty
  • Working temperature range from -30 to +70°C
  • Dimension is (L x W x H) 325.8 x 107 x 41mm
