| Manufacturer | METRIX |
|---|---|
| Manufacturer Part No | MX0535Copy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 3052065 |
| Also Known As | MX535 |
| Your Part Number | |
| Technical Datasheet |
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | HK$8,482.790 |
Product Information
| Manufacturer | METRIX |
|---|---|
| Manufacturer Part No | MX0535Copy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 3052065 |
| Also Known As | MX535 |
| Technical Datasheet | |
| Product Range | - |
| Voltage Measure DC Max | 2kV |
| Voltage Measure AC Max | 1.2kV |
| Insulation Resistance Min | 10kohm |
| Insulation Resistance Max | 999.9Mohm |
| SVHC | To Be Advised |
Product Overview
MX0535 multifunction installation tester is a lightweight tester offers all the essential functions for checking the safety of electrical installations according to the applicable standards: NF C 15-100, FDC 16-600, EN 61557, etc. Particularly aimed at self-employed electricians, contractors, installers, certification organizations and maintenance teams, it offers a good price/performance trade-off. The MX 535 can be used to run automatic test sequences and store the results. Earth measurement is performed by the stake method with loop measurement.
- Earth measurement by stake and loop methods
- Continuity measurement at 0.2A
- Insulation testing RCD testing: current and trip time
- Automatic test sequences
- Storage of test results
- ANDROID application for report generation
- Power supply by mains-rechargeable batteries, USB socket or vehicle cigarette lighter
Contents

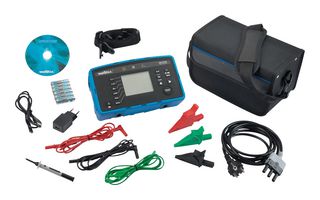

1 x MX0535 low-voltage installation tester, 1 x carrying bag, 1 x neck strap, 1 x EURO 3-pole mains plug, 3 safety cables (1.5 m- 4 mm – red/black/green), 3 x crocodiles clips (red/black/green), 1 x black test probe, 6 x NiMH batteries, 1 x 2A USB power supply, 1 x USB-razor-type connector power supply cable, 1 x User’s Manual on CD-ROM (5 languages), 1 x quick start-up guide on paper, 1 x safety datasheet, 1 x battery information sheet, 1 x test report with measurement report.
Technical Specifications
| Product Range | - |
|---|---|
| Voltage Measure AC Max | 1.2kV |
| Insulation Resistance Max | 999.9Mohm |
| Voltage Measure DC Max | 2kV |
|---|---|
| Insulation Resistance Min | 10kohm |
| SVHC | To Be Advised |
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | France Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 90318080 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | To be advised |
| RoHS Phthalates Compliant: | To be advised |
| SVHC: | To Be Advised |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | 2.41 |
