31059105
Wire-To-Board Terminal Block, 3.5 mm, 5 Ways, 28 AWG, 16 AWG, 1 mm², Screw

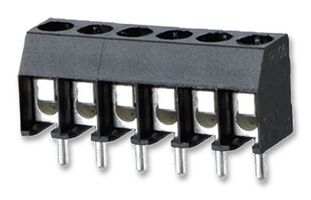

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | METZ CONNECT |
|---|---|
| Manufacturer Part No | 31059105Copy |
| Manufacturer Standard Lead Time | 7 weeks |
| Order Code | 2434246 |
| Your Part Number | |
| Technical Datasheet |
600 In Stock
Need more?
600 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$22.530 |
| 10+ | HK$16.100 |
| 100+ | HK$11.660 |
| 500+ | HK$9.840 |
| 1000+ | HK$8.960 |
| 2500+ | HK$8.550 |
Price for:Each
Minimum: 1
Multiple: 1
HK$22.53
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | METZ CONNECT |
|---|---|
| Manufacturer Part No | 31059105Copy |
| Manufacturer Standard Lead Time | 7 weeks |
| Order Code | 2434246 |
| Technical Datasheet | |
| Pitch Spacing | 3.5mm |
| No. of Positions | 5Ways |
| Wire Size AWG Min | 28AWG |
| Wire Size AWG Max | 16AWG |
| Conductor Area CSA | 1mm² |
| Wire Connection Method | Screw |
| Rated Current | 13.5A |
| Rated Voltage | 125V |
| Block Orientation | Through Hole Right Angle |
| Product Range | - |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview
The 31059105 is a 5-pole black wire-to-board Screw Terminal Block with through-hole 90° direction of connection and wire protector. It is fittable without loss of poles and has 3.5mm centreline. It has copper-nickel-tin-plated CuZn terminal with tin-plated CuSn wire protector, zinc-chromate (VI) screw surface and PA 66 insulation.
- IP20 Protection
- CTI600 Insulating material class
- -40 to 105°C Operating temperature range
Applications
Industrial
Technical Specifications
| Pitch Spacing | 3.5mm |
|---|---|
| Wire Size AWG Min | 28AWG |
| Conductor Area CSA | 1mm² |
| Rated Current | 13.5A |
| Block Orientation | Through Hole Right Angle |
| SVHC | No SVHC (25-Jun-2025) |
| No. of Positions | 5Ways |
|---|---|
| Wire Size AWG Max | 16AWG |
| Wire Connection Method | Screw |
| Rated Voltage | 125V |
| Product Range | - |
Technical Docs (2)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Hungary Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85366930 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .002517 |
