31229106
Terminal Block, Header, 5.08 mm, 6 Ways, 15 A, 300 V, Through Hole Right Angle

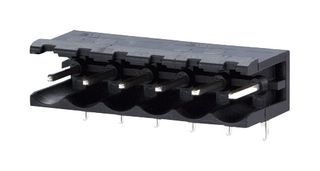

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | METZ CONNECT |
|---|---|
| Manufacturer Part No | 31229106Copy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 2774396 |
| Your Part Number | |
| Technical Datasheet |
5,095 In Stock
Need more?
5,095 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$12.570 |
| 10+ | HK$10.930 |
| 100+ | HK$8.990 |
| 500+ | HK$8.420 |
| 1000+ | HK$8.180 |
| 2500+ | HK$8.010 |
Price for:Each
Minimum: 1
Multiple: 1
HK$12.57
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | METZ CONNECT |
|---|---|
| Manufacturer Part No | 31229106Copy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 2774396 |
| Technical Datasheet | |
| Gender | Header |
| Pitch Spacing | 5.08mm |
| No. of Positions | 6Ways |
| Rated Current | 15A |
| Rated Voltage | 300V |
| Block Orientation | Through Hole Right Angle |
| Product Range | - |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview
The 31229106 from Metz Connect is a PT116xxHBEC (Type 229) series solderable pin header with 6 poles. The 5.08mm pitch, 90° terminals plugged into the PCB and then soldered.
- Open ends fittable without loss of poles
- Codeable
- Insulating material is black colour PA66 (class CTI 600), contact pin material is CuFe
- Solder pin dimension is 1mm x 1mm, solder pin length is 3.45mm
- Recommended PC board hole diameter is 1.5mm
- Clearance and creepage distances is 4.08mm
- IP 00 protection category according to IEC 60529
- Operating temperature range from -40°C to 105°C
- Overvoltage category III, pollution degree 3, 320V rated voltage, 4KV rated test voltage
- Approved by UL, CRJUS, SEV standards
Applications
Industrial
Technical Specifications
| Gender | Header |
|---|---|
| No. of Positions | 6Ways |
| Rated Voltage | 300V |
| Product Range | - |
| Pitch Spacing | 5.08mm |
|---|---|
| Rated Current | 15A |
| Block Orientation | Through Hole Right Angle |
| SVHC | No SVHC (25-Jun-2025) |
Technical Docs (2)
Alternatives for 31229106
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Germany Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85366930 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .0021 |
