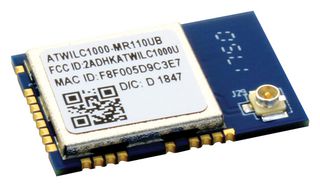

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | MICROCHIP |
|---|---|
| Manufacturer Part No | ATWILC1000-MR110UBCopy |
| Manufacturer Standard Lead Time | 22 weeks |
| Order Code | 2851707 |
| Your Part Number | |
| Technical Datasheet |
Available to Order
Manufacturer Standard Lead Time: 22 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | HK$60.570 |
| 5+ | HK$59.360 |
Price for:Each
Minimum: 1
Multiple: 1
HK$60.57
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | MICROCHIP |
|---|---|
| Manufacturer Part No | ATWILC1000-MR110UBCopy |
| Manufacturer Standard Lead Time | 22 weeks |
| Order Code | 2851707 |
| Technical Datasheet | |
| Frequency RF | 2.472GHz |
| Module Interface | SPI, SDIO |
| Module Applications | Wireless Connectivity |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
Low-power consumption IEEE 802.11 b/g/n IoT (Internet of Things) module specifically optimized for low power IoT applications. This module features small form factor (21.7mm x 14.7mm x 2.1mm) while fully integrating Power Amplifier (PA), Low Noise Amplifier (LNA), Transmit/Receive (T/R), switch, power management and PCB antenna. With advanced security it is interoperable with various vendors using IEEE 802.11b/g/n access points in wireless LAN. The module provides SPI and Secure Digital Input Output (SDIO) to interface with the host controller.
- Compliant with IEEE 802.11 b/g/n 20MHz (1x1) solution
- Supports single spatial stream in 2.4GHz ISM band
- Superior sensitivity and range through advanced PHY signal processing
- Advanced equalization and channel estimation
- Wi-Fi Direct® and Soft-AP support
- Superior MAC throughput through hardware accelerated frame aggregation and block acknowledgement
- On-chip memory management engine to reduce the host load
- SPI and SDIO host interfaces and built-in 26MHz crystal
- Wi-Fi Alliance® certified for connectivity and optimizations
Technical Specifications
| Frequency RF | 2.472GHz |
|---|---|
| Module Applications | Wireless Connectivity |
| SVHC | No SVHC (04-Feb-2026) |
| Module Interface | SPI, SDIO |
|---|---|
| Product Range | - |
Technical Docs (2)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Thailand Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85176200 |
| US ECCN: | 5A992.c |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .004763 |
