| Manufacturer | MICROCHIP |
|---|---|
| Manufacturer Part No | WFI32E01PE-ICopy |
| Manufacturer Standard Lead Time | 22 weeks |
| Order Code | 3594585 |
| Product Range | WFI32E01 Series |
| Your Part Number | |
| Technical Datasheet |
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | HK$50.070 |
| 25+ | HK$49.070 |
| 100+ | HK$48.070 |
Product Information
| Manufacturer | MICROCHIP |
|---|---|
| Manufacturer Part No | WFI32E01PE-ICopy |
| Manufacturer Standard Lead Time | 22 weeks |
| Order Code | 3594585 |
| Product Range | WFI32E01 Series |
| Technical Datasheet | |
| Frequency RF | 2.5GHz |
| Module Interface | CAN, CAN-FD, I2C, I2S, JTAG, SPI, SQI, UART, USB |
| Module Applications | Radio, RF Communications, Wireless Connectivity WiFi |
| Product Range | WFI32E01 Series |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview

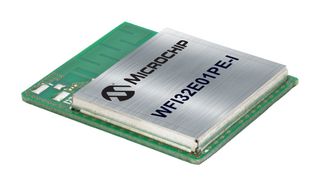

WFI32E01PE is a standalone and fully certified Wi-Fi module supporting 2.4GHz 802.11 b/g/n radio modes. Specially designed for industrial IoT applications, WFI32E01PE contains the PIC32MZW1 series Wi-Fi SoC, which is a 200MHz high performance MCU with industrial leading Wi-Fi connectivity and rich peripheral options. PIC32MZW1 has 1MB embedded flash and 256KB SRAM, empowering embedded designers to rapidly build complex IoT software covering WLAN, TCP/IP stack, RTOS, Cloud connectivity, and application. Various types of peripherals, such as Ethernet, USB, ADC, CVD touch buttons, and CAN, make PIC32MZW1 a perfect system core to realize the most application features.
- 200MHz, MIPS32® M-Class Microprocessor Core
- 1MB embedded flash, 256KB SRAM (program and data), 64KB data buffer
- High performance peripheral set including full-speed USB, CAN, CAN-FD, 10/100 MAC, 12bit dual ADCs
- Single-band 2.4GHz b/g/n
- Wi-Fi security protocols supported: WPA/WPA2/WPA3 Personal, TLS, SSL
- CVD touch input
- 24.5mm x 20.5mm x 2.5mm size
- Voltage range from 3.0V to 3.6V
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Technical Specifications
| Frequency RF | 2.5GHz |
|---|---|
| Module Applications | Radio, RF Communications, Wireless Connectivity WiFi |
| SVHC | No SVHC (04-Feb-2026) |
| Module Interface | CAN, CAN-FD, I2C, I2S, JTAG, SPI, SQI, UART, USB |
|---|---|
| Product Range | WFI32E01 Series |
Technical Docs (2)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Thailand Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84733020 |
| US ECCN: | 5A992.c |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .009525 |
