MCCOG128064C6WD-FPTLW
Graphic LCD, 128 x 64, Black on White, 3V, Parallel, English, Japanese, Transflective

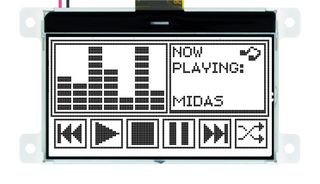

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | MIDAS DISPLAYS |
|---|---|
| Manufacturer Part No | MCCOG128064C6WD-FPTLWCopy |
| Manufacturer Standard Lead Time | 16 weeks |
| Order Code | 4048498 |
| Your Part Number | |
| Technical Datasheet |
Available to Order
Manufacturer Standard Lead Time: 16 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | HK$204.060 |
| 5+ | HK$189.490 |
| 10+ | HK$174.920 |
| 50+ | HK$163.900 |
| 100+ | HK$156.140 |
| 250+ | HK$154.280 |
Price for:Each
Minimum: 1
Multiple: 1
HK$204.06
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | MIDAS DISPLAYS |
|---|---|
| Manufacturer Part No | MCCOG128064C6WD-FPTLWCopy |
| Manufacturer Standard Lead Time | 16 weeks |
| Order Code | 4048498 |
| Technical Datasheet | |
| Resolution | 128 x 64 |
| Display Appearance | Black on White |
| Logic Voltage | 3V |
| Interface Type | Parallel |
| Font Set | English, Japanese |
| Display Mode | Transflective |
| LCD Display Type | FSTN |
| Module Size | 89.7mm x 49.8mm |
| Operating Temperature Min | -20°C |
| Operating Temperature Max | 70°C |
| Display Construction | COG |
| Backlighting Colour | White |
| Product Range | - |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview
- Graphic LCD (Liquid Crystal Display) display with 128 x 64 pixels
- FSTN transflective, white LED backlight
- Black dots on a white background appearance
- Parallel interface, ST7565P controller
- 3V driving voltage, 6 o’clock viewing angle
- 30-way, 0.5mm pitch, flat flexi
- Operating temperature range from -20°C to +70°C
- Chip on glass construction
- 89.70mm x 49.80mm x 6.00mm overall size and 69.00mm x 36.50mm viewing area
- 0.47mm x 0.47mm pixel size
Technical Specifications
| Resolution | 128 x 64 |
|---|---|
| Logic Voltage | 3V |
| Font Set | English, Japanese |
| LCD Display Type | FSTN |
| Operating Temperature Min | -20°C |
| Display Construction | COG |
| Product Range | - |
| Display Appearance | Black on White |
|---|---|
| Interface Type | Parallel |
| Display Mode | Transflective |
| Module Size | 89.7mm x 49.8mm |
| Operating Temperature Max | 70°C |
| Backlighting Colour | White |
| SVHC | No SVHC (25-Jun-2025) |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Taiwan Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85312095 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .07 |
