MC122032B6W-BNMLW-V2
Graphic LCD, 122 x 32 Pixels, White on Blue, 5V, Parallel, No Font, Transmissive

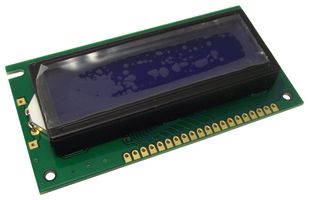

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | MIDAS DISPLAYS |
|---|---|
| Manufacturer Part No | MC122032B6W-BNMLW-V2Copy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 2675686 |
| Your Part Number | |
| Technical Datasheet |
Available to Order
Manufacturer Standard Lead Time: 14 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | HK$157.520 |
| 5+ | HK$146.280 |
| 10+ | HK$135.020 |
| 50+ | HK$126.520 |
| 100+ | HK$120.530 |
| 250+ | HK$119.100 |
Price for:Each
Minimum: 1
Multiple: 1
HK$157.52
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | MIDAS DISPLAYS |
|---|---|
| Manufacturer Part No | MC122032B6W-BNMLW-V2Copy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 2675686 |
| Technical Datasheet | |
| Resolution | 122 x 32 Pixels |
| Display Appearance | White on Blue |
| Logic Voltage | 5V |
| Interface Type | Parallel |
| Font Set | No Font |
| Display Mode | Transmissive |
| LCD Display Type | BSTN |
| Module Size | 84mm x 44mm |
| Operating Temperature Min | -20°C |
| Operating Temperature Max | 70°C |
| Display Construction | COB |
| Backlighting Colour | White |
| Product Range | - |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview
The MC122032B6W-BNMLW-V2 from Midas is a chip on board LCD graphic module. The overall size of module is 80mm x 44mm x 15mm (W x H x D) with 122 x 32 characters.
- Typical input voltage is 5V
- Supply current is 1.5mA at Vdd = 5V
- Blue transmissive STN
- LED white backlight
- 6 "o" clock viewing direction
- SBN1661G_M02 controller
- Operating temperature range from -20°C to 70°C
- 5V logic supply, 1/32 display duty and 1/7 driving bias
- White LED backlight
- Preferred 6 o'clock viewing angle
- Wide operating temperature range -20 to +70oC
- 20-way through-hole SIL connection (top, left) with 2.54mm pitch
- Overall dimensions - 84.0 x 44.0 x 15.0mm
- Same foot print as industry standard 16 x 2 alphanumeric LCD module
Applications
Imaging, Video & Vision
Technical Specifications
| Resolution | 122 x 32 Pixels |
|---|---|
| Logic Voltage | 5V |
| Font Set | No Font |
| LCD Display Type | BSTN |
| Operating Temperature Min | -20°C |
| Display Construction | COB |
| Product Range | - |
| Display Appearance | White on Blue |
|---|---|
| Interface Type | Parallel |
| Display Mode | Transmissive |
| Module Size | 84mm x 44mm |
| Operating Temperature Max | 70°C |
| Backlighting Colour | White |
| SVHC | No SVHC (25-Jun-2025) |
Technical Docs (2)
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85312095 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .06 |
