MC144032A6WC-SPTLY
Graphic LCD, 144 x 32, Black on Yellow / Green, 3V to 5V, Parallel, English, Chinese

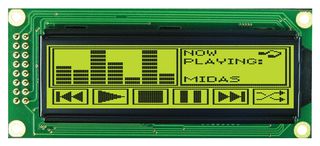

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | MIDAS DISPLAYS |
|---|---|
| Manufacturer Part No | MC144032A6WC-SPTLYCopy |
| Manufacturer Standard Lead Time | 18 weeks |
| Order Code | 2063210 |
| Product Range | MC144032A6WC |
| Your Part Number | |
| Technical Datasheet |
Available to Order
Manufacturer Standard Lead Time: 18 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | HK$236.790 |
| 5+ | HK$219.880 |
| 10+ | HK$202.960 |
| 50+ | HK$190.180 |
| 100+ | HK$181.170 |
Price for:Each
Minimum: 1
Multiple: 1
HK$236.79
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | MIDAS DISPLAYS |
|---|---|
| Manufacturer Part No | MC144032A6WC-SPTLYCopy |
| Manufacturer Standard Lead Time | 18 weeks |
| Order Code | 2063210 |
| Product Range | MC144032A6WC |
| Technical Datasheet | |
| Resolution | 144 x 32 |
| Display Appearance | Black on Yellow / Green |
| Logic Voltage | 3V to 5V |
| Interface Type | Parallel |
| Font Set | English, Chinese |
| Display Mode | Transflective |
| LCD Display Type | STN |
| Module Size | 85mm x 36mm |
| Operating Temperature Min | -20°C |
| Operating Temperature Max | 70°C |
| Display Construction | COB |
| Backlighting Colour | Yellow / Green LED |
| Product Range | MC144032A6WC |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview
- Graphic LCD module
- Resolution 144x32 dots (144 x 32)
- Positive mode yellow/green STN material
- Appearance blue/black dots on yellow/green background
- Transflective technology, for both outdoor and indoor applications
- Chip on Board construction (COB) for easy mounting and connection
- Onboard ST7920 Controller with standard parallel interface
- Controller provides onboard fonts for English and Simplified Chinese characters
- 5V logic supply, plus built in negative voltage generator
- 1/32 display duty
- Yellow/green LED backlight, via pins A, K
- Preferred 6 o'clock viewing angle
- Wide operating temperature range -20 to +70oC
- 16-way through-hole DIL connection (side, left, 2x8) with 2.54mm pitch
- Same foot print as industry standard 16 x 2 alphanumeric LCD module
- Overall dimensions - 85.0 x 36.0 x 13.2mm
- Viewing area - 66.0 x 16.0mm
- Dot size - 0.38 x 0.38mm
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Technical Specifications
| Resolution | 144 x 32 |
|---|---|
| Logic Voltage | 3V to 5V |
| Font Set | English, Chinese |
| LCD Display Type | STN |
| Operating Temperature Min | -20°C |
| Display Construction | COB |
| Product Range | MC144032A6WC |
| Display Appearance | Black on Yellow / Green |
|---|---|
| Interface Type | Parallel |
| Display Mode | Transflective |
| Module Size | 85mm x 36mm |
| Operating Temperature Max | 70°C |
| Backlighting Colour | Yellow / Green LED |
| SVHC | No SVHC (25-Jun-2025) |
Technical Docs (2)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Taiwan Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85312095 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .045 |
