MC144032D6WC-BNMLW

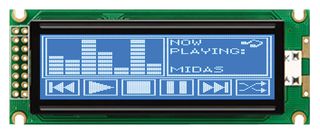

Graphic LCD, 144 x 32, White on Blue, 5V, Parallel, English, Chinese, Transmissive
Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | MIDAS DISPLAYS |
|---|---|
| Manufacturer Part No | MC144032D6WC-BNMLWCopy |
| Manufacturer Standard Lead Time | 18 weeks |
| Order Code | 2063215 |
| Product Range | MC144032D6WC |
| Your Part Number | |
| Technical Datasheet |
Available to Order
Manufacturer Standard Lead Time: 18 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | HK$225.350 |
| 5+ | HK$209.260 |
| 10+ | HK$193.160 |
| 50+ | HK$181.000 |
| 100+ | HK$172.420 |
Price for:Each
Minimum: 1
Multiple: 1
HK$225.35
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | MIDAS DISPLAYS |
|---|---|
| Manufacturer Part No | MC144032D6WC-BNMLWCopy |
| Manufacturer Standard Lead Time | 18 weeks |
| Order Code | 2063215 |
| Product Range | MC144032D6WC |
| Technical Datasheet | |
| Resolution | 144 x 32 |
| Display Appearance | White on Blue |
| Logic Voltage | 5V |
| Interface Type | Parallel |
| Font Set | English, Chinese |
| Display Mode | Transmissive |
| LCD Display Type | BSTN |
| Module Size | 85mm x 30mm |
| Operating Temperature Min | -20°C |
| Operating Temperature Max | 70°C |
| Display Construction | COB |
| Backlighting Colour | White LED |
| Product Range | MC144032D6WC |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview
- Graphic LCD module
- Resolution 144x32 dots (144 x 32)
- Negative mode STN (BSTN) material
- Appearance white dots on blue background
- Transmissive technology, for indoor applications
- Chip on Board construction (COB) for easy mounting and connection
- Onboard ST7920 Controller with standard parallel interface
- Controller provides onboard fonts for English and Simplified Chinese characters
- 5V logic supply, with built in negative voltage generator
- 1/32 display duty
- White LED backlight, via pins A, K
- Preferred 6 o'clock viewing angle
- Wide operating temperature range -20 to +70oC
- 14-way through-hole DIL connection (side, left, 2x7) with 2.54mm pitch
- Same foot print as industry standard 16 x 2 alphanumeric LCD module
- Overall dimensions - 85.0 x 30.0 x 13.2mm
- Viewing area - 66.0 x 16.0mm
- Dot size - 0.38 x 0.38mm
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Technical Specifications
| Resolution | 144 x 32 |
|---|---|
| Logic Voltage | 5V |
| Font Set | English, Chinese |
| LCD Display Type | BSTN |
| Operating Temperature Min | -20°C |
| Display Construction | COB |
| Product Range | MC144032D6WC |
| Display Appearance | White on Blue |
|---|---|
| Interface Type | Parallel |
| Display Mode | Transmissive |
| Module Size | 85mm x 30mm |
| Operating Temperature Max | 70°C |
| Backlighting Colour | White LED |
| SVHC | No SVHC (25-Jun-2025) |
Technical Docs (2)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Taiwan Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85312095 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .045 |
